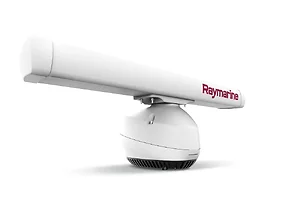

Raymarine 4kW Magnum Radar with 4' Antenna and 15m Cable
Model: T70408Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.
Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.
Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.
Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.
Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.
Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.
Specifications| Antenna size | 4' 4" |
| Max Range Scale | 72nm |
| Antenna Specifications | |
| Beam Width Horizontal (Nominal) | 1.85° |
| Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) | Less than 1° |
| Beam Width Vertical -3dB | 25° |
| Antenna Side Lobes (Inside 10°) | < -21dB |
| Antenna Side Lobes (Outside 10°) | < -30dB |
| Rotation Rate | 24 rpm / 48 rpm (Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) |
| Receiver Bandwidth | Matched digital filter for each pulse length |
| Pulse Length/PRF Settings | 8 |
| Number of Displayed Video Levels | 256 (8-bit) |
| Power specifications | |
| Voltage | 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems |
| Power Consumption (Typical) | <70W (Transmit) <30W (Standby) <1.2W (Sleep) |
| Targets | |
| Maximum Automatic and Manual MARPA Targets (with Heading Sensor) | 25 |
| Real-Time Heading Refresh (with Heading Sensor) | Yes |
| True Trails (with Heading Sensor) | Yes |
| Compatibility | |
| Axiom / Axiom Pro (LH3.4 or later) | Compatible with full feature set |
| eS Series / gS Series (LH3.3 or later) | Compatible with limited feature set. No automatic MARPA |
| a/c/e/eS/gS Series (LH2 v19.03) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| E-Wide (v2.65) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| C-Wide (v2.35) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode |
| G-Series (v4.66) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| E-Classic (v5.69) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode |
The Raymarine 4kW Magnum 4ft Open Array With 15m Cable (T70408) is a marine radar system designed for integration with Raymarine multifunction navigation displays. It provides enhanced radar imaging and target tracking capabilities for maritime applications. This system is suitable for professional users and recreational boaters who require detailed situational awareness and reliable performance in varying conditions. It addresses challenges such as target separation, long-range detection, and real-time heading updates, contributing to safer navigation and efficient operations. The Magnum radar incorporates beam sharpening technology for improved bearing resolution and features like Bird Mode for locating baitfish up to 10nm. It also offers automatic MARPA target acquisition and True Trails target history for interpreting vessel movement. The included 15m cable facilitates installation, and the system operates on 10.8 to 32 volts DC.
The Raymarine 4kW Magnum radar has a maximum range scale of 72 nautical miles (72nm).
The T70408 includes the Raymarine 4kW Magnum Radar with a 4-foot antenna and a 15-meter cable.
The Bird Mode feature is designed to help anglers locate flocks of birds with greater clarity up to 10nm, which assists in finding schooling baitfish faster and more efficiently.
The system operates on 10.8 to 32 volts DC, utilizing the supplied VCM100, making it compatible with both 12V and 24V DC systems.
T70408 - Raymarine 4kW Magnum 4ft Open Array With 15m Cable
