T70495 - Raymarine 110W Cyclone Pro Radar Kit

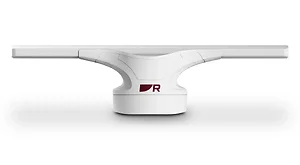

Raymarine 110 Watt Cyclone Pro Radar with 4' Antenna

This advanced radar system features a rugged design and exceptional performance, engineered to meet the commercial grade IEC 62388 standard for shipborne radar. With a best-in-class 100-knot wind rating, the Cyclone Radar is built to withstand extreme marine conditions.

At 13.1 inches (335 mm) tall, this radar's lower profile provides greater flexibility in installation options. The innovative pedestal design ensures a cleaner installation by concealing cable connections.

The Cyclone Radar operates at a fast 60 RPM rotational speed, delivering 360 degrees of awareness and accurate real-time target tracking. Enhanced Doppler target tracking simplifies the interpretation of hazardous and safe targets, adding an extra layer of safety while navigating.

Equipped with professional-grade ARPA target tracking, the Cyclone can automatically track up to 50 targets, utilizing the same advanced ARPA technology trusted by the United States Coast Guard. Feature highlights include RangeFusion� technology which combines short and long pulses into a singular high clarity radar image, enabling exceptional detection of both short-range and long-range targets at the same time.

The ultimate expression of reliable performance and unmatched situational awareness, Cyclone radars empower mariners to tackle challenging conditions confidently and navigate busy waterways effectively.

The Raymarine 110W Cyclone Pro Radar Kit, part number T70495, is a marine radar system designed for commercial and professional maritime applications. This kit includes a 110-watt Cyclone Pro Radar unit and a 4-foot antenna. It is engineered to meet the commercial-grade IEC 62388 standard for shipborne radar and features a 100-knot wind rating for durability in extreme marine conditions. The system provides 360-degree awareness through a 60 RPM rotational speed, enabling real-time target tracking. Key functionalities include Doppler target tracking to differentiate hazardous targets and professional-grade ARPA technology capable of tracking up to 50 targets. RangeFusion� technology integrates short and long pulses for clear imaging across various ranges. Its 13.1-inch (335 mm) low-profile design and concealed cable connections facilitate flexible and clean installations. This radar system is suitable for mariners requiring robust situational awareness and reliable performance in challenging conditions and busy waterways.
