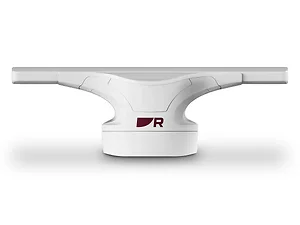

Raymarine 110 Watt Cyclone Radar with 3' Antenna
Model: T70494The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 95 Watts |
| Power consumption (max) | 195 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 96 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 110 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 2.83 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1031 mm / 40.59 in |
| Weight | 7 Kg / 15.4 lb |
The Raymarine 110 Watt Cyclone Pro Radar with 3ft Antenna and 15m Cables, part number T70494, is a solid-state open array radar system designed for marine applications. This unit is suitable for commercial and recreational vessels requiring robust radar capabilities in challenging conditions. It features an aircraft-wing-inspired design with a 100-knot wind rating and meets the commercial-grade IEC 62388 standard. Key functionalities include a fast 60 RPM rotational speed for real-time awareness, Doppler target tracking to differentiate dangerous and safe targets, and professional-grade ARPA target tracking for up to 50 targets. RangeFusion� technology integrates short and long pulses for a clear radar image, while an enhanced Cyclone Bird Mode utilizes CHIRP pulse compression for locating seabirds. The system operates on 12 V dc or 24 V dc, has an IPX6 waterproof rating, and offers a maximum range scale of 96 nm. Its compact 13.1-inch profile allows for flexible installation.
The box includes the E70621 110 watt pedestal, the E70628 3' Antenna, an A80653 15m Power cable, and an A8058 15m Data Cable.
The system requires a nominal supply voltage of 12 V dc or 24 V dc, with a minimum of 10.2 V dc and a maximum of 31.2 V dc. Typical power consumption is 95 Watts, with a maximum of 195 Watts during operation.
The Raymarine Cyclone Pro Radar is engineered with a best-in-class 100-knot wind rating, making it suitable for extreme marine conditions.
Yes, it features Doppler target tracking to simplify the interpretation of dangerous and safe targets. It also includes professional-grade ARPA target tracking, capable of automatically tracking up to 50 targets.
