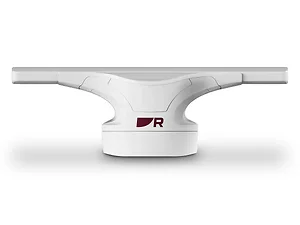

Raymarine 55 Watt Cyclone Radar with 3' Antenna
Model: T70491The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and high speed 60 rpm imaging.
Specifications| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc |
| Power consumption (typical) | 70 Watts |
| Power consumption (max) | 170 Watts |
| Power consumption (standby) | 28 Watts |
| Maximum range scale | 72 nm |
| Boot up time | 40 seconds |
| Standby to transmit | less than 5 seconds |
| Waterproof rating | IPX6 |
| Operating temperature range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum wind speed | 100 Kts |
| Power connection | 1x Power connector |
| Data connection | 1x RayNet connector |
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 Watts |
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Pedestal | |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Antenna | |
| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 2.83 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1031 mm / 40.59 in |
| Weight | 7 Kg / 15.4 lb |
The Raymarine 55 Watt Cyclone Radar with 3' Antenna, part number T70491, is a solid-state open array radar system designed for marine navigation and situational awareness. This unit is engineered for demanding conditions, featuring a 100-knot wind rating and adherence to the commercial-grade IEC 62388 standard. It provides a maximum range scale of 72 nautical miles and operates with a 55 Watt peak power output. The system's 13.1-inch profile allows for flexible installation on various vessel architectures. Key functionalities include a 60 RPM rotational speed for real-time 360-degree awareness, Doppler target tracking for identifying dangerous targets, and ARPA target tracking for up to 50 targets. RangeFusion technology integrates short and long pulses for a single, high-clarity radar image, while Cyclone Bird Mode utilizes CHIRP pulse compression for locating seabirds. This radar is suitable for mariners requiring robust performance and enhanced target detection in challenging environments and busy waterways.
The package includes the E70620 55 watt pedestal, the E70628 3' Antenna, an A80653 15m Power cable, and an A8058 15m Data Cable.
The system operates on a nominal supply voltage of 12 V dc or 24 V dc, with a minimum of 10.2 V dc and a maximum of 31.2 V dc. Typical power consumption is 70 Watts, with a maximum of 170 Watts and 28 Watts in standby.
The Raymarine Cyclone radar is engineered with a best-in-class 100-knot wind rating, designed to perform reliably in extreme conditions.
Yes, it features Doppler target tracking to simplify the interpretation of dangerous and safe targets, and professional-grade ARPA target tracking that automatically tracks up to 50 targets using advanced technology.
T70491 - Raymarine 55 Watt Cyclone With 3ft Antenna 15m Cables
