4 Available / 5 Sold
Condition: New

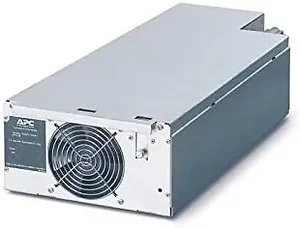

APC Symmetra LX 4kVA Power Module, 200/208V with high density, double-conversion on-line power protection
The APC Symmetra LX 4kVA Power Module (SYPM4KP) is an internal, online uninterruptible power supply designed for business and IT environments requiring consistent power delivery. This module provides 3200 Watts / 4000 VA of double-conversion on-line power protection, ensuring a stable sine wave output and mitigating power disruptions. It is suitable for applications where critical equipment requires continuous operation, even during fluctuations in the main power supply. The unit supports configurable output voltages of 100V, 120V, 200V, 208V, and 240V, with an input voltage range of 155-276V. Its double-conversion online topology isolates connected loads from raw utility power, protecting against sags, surges, and other electrical noise. This module is intended for integration into existing APC Symmetra LX systems, providing a reliable power foundation for sensitive IT hardware.
Output
Output Power Capacity :3200 Watts / 4000 VA
Max Configurable Power :3200 Watts / 4000 VA
Nominal Output Voltage :100V, 120V, 200V, 208V
Output Voltage Note :Configurable for 120/208 or 120/240 output voltage
Output Voltage Distortion :Less than 5% at full load Output Frequency (sync to mains) :47 - 63 Hz
Other Output Voltages :240
Crest Factor :up to 5 : 1
Topology :Double Conversion Online
Waveform Type :Sine wave
Output Connections :(1) Hard Wire 4-wire (2PH + N +G) Input
Nominal Input Voltage :200V, 208V
Input Frequency :45 - 65 Hz (auto sensing)
Input voltage range for main operations :155 - 276V
Other Input Voltages :240V Color
Silver
Conformance
Regulatory Approvals :CSA, FCC Part 15 Class A, UL 1778 Item Dimension (L"xW"xH"):
31.10 x 17.30 x 13.00
Weight:
42.13 lb
Warranty Information:
2 years repair or replace
The module provides an output power capacity of 3200 Watts / 4000 VA. This is also its maximum configurable power.
This module utilizes a Double Conversion Online topology. This method provides continuous, regulated power by converting AC to DC and then back to AC, isolating the load from input power variations.
The nominal input voltages are 200V, 208V, and 240V, with an input voltage range for main operations of 155-276V. Nominal output voltages are 100V, 120V, 200V, 208V, and 240V, configurable for 120/208 or 120/240 output.
The module has dimensions of 31.10 inches (L) x 17.30 inches (W) x 13.00 inches (H) and weighs 42.13 lbs.
SYPM4KP - Apc - Schneider Electric UPS - INTERNAL - ONLINE - AC 120/208 V ( 47 - 63 HZ ) - 3200 WATT / 4000 VA - HI
