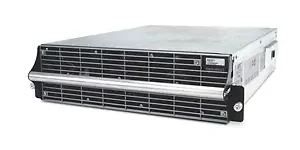

SYPM10KF2 - Apc - Schneider Electric SYMMETRA PX 10KW POWER MODULE, 208V

The SYMMETRA PX 10kW Power Module is designed for compatibility with the Symmetra PX 20/40/100 UPS systems. This power module is perfect for replacement or upgrading your system capacity.

• Lead time: Usually ships within 2 weeks
• Min-max run time load: 1000 to 10000 Watts - Infinite hours
• Main input voltage: 208 V; 3 phase
• Main output voltage: 208 V; 3 phase
• Rated power: 10000 Watts
• Input frequency: 60 Hz +/- 3 Hz
• Efficiency at full load: 177-239 V
• Input power factor at full load: 0.99
• Max configurable power: 10000 Watts
• Harmonic distortion at full load: < 5%
• Output frequency (synchronized to mains): 57-63 Hz for 60 Hz nominal sync; 60 Hz +/- 0.1% for 60 Hz nominal not synced
• Crest factor: Unlimited
• Topology: Double Conversion Online
• Wave type: Sine wave
• Certifications: cUL Listed; UL Listed
• Standards: FCC Part 15 Class A; ISO 14001; ISO 9001; UL 60950
• Operating temperature: 32 to 104 °F (0 to 40 °C)
• Humidity: 0 to 95%
• Operating altitude: 0 to 3333 ft
• Storage temperature: 5 to 104 °F (-15 to 40 °C)
• Storage humidity: 0 to 95%
• Storage altitude: 0 to 15000 ft (0 to 4572 m)
• Acoustic level: 64 dBA
• Heat dissipation: 2970 BTU/h
• Package type: PCE
• Units per package: 1
• Package dimensions: 8.86 in height, 31.30 in width, 23.43 in length
• Package weight: 61.84 lb (28.05 kg)

The APC SYMMETRA PX 10kW Power Module, part number SYPM10KF2, is a component designed for integration with Symmetra PX 20/40/100 UPS systems. This module provides 10,000 Watts of rated and configurable power, operating with a 208V three-phase input and output. It is suitable for IT environments requiring either a replacement power module for an existing Symmetra PX system or an upgrade to increase current system capacity. The module utilizes a Double Conversion Online topology, producing a sine wave output. Key operational specifications include an input power factor of 0.99 at full load and less than 5% harmonic distortion at full load, contributing to efficient and stable power delivery. It operates within a temperature range of 0 to 40 �C and is cUL Listed and UL Listed, meeting relevant safety and quality standards. This module addresses the need for reliable power expansion or maintenance within compatible UPS infrastructures.
