SKU: I67QK2C19L |  Mfg. Part: SUVTP10KF1B2S  | UPC: 731304259688  |
 1 Reviews  |     Share Make an offer

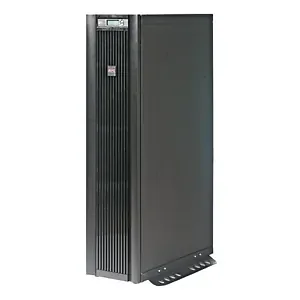

Apc - Schneider Electric SUVTP10KF1B2S UPS - EXTERNAL - ONLINE - 8 KW - 1 X MANAGEMENT - ETHERNET 10BASE-T/100BASE-TX -

Special Order
Ships in 1-2 weeks
Condition: New

$9,091.22  $12,273.15

AUTHORIZED
Need 10+? Request a volume quote

Product Overview

APC Smart-UPS VT 10kVA with 1 Battery Module Expandable to 2 - UPS - AC 208/220 V - 8 kW - 10000 VA - 3-phase - RS-232 - output connectors: 2 - black

Technical Specifications

Output
Output power capacity
8.0kWatts / 10.0kVA
Max Configurable Power (Watts)
8.0kWatts / 10.0kVA
Nominal Output Voltage
120V, 208V, 208V 3PH
Output Voltage Note
Configurable for 208 and 220V - 3 Phase
Efficiency at Full Load
93.2 %
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 - 63 Hz for 60 Hz nominal
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal
Other Output Voltages
220
Load Crest Factor
Unlimited
Topology
Double Conversion Online
Waveform type
Sine wave
Maximum Output Current
31
Bypass
Built-in Maintenance Bypass, Built-in Static Bypass
Input
Nominal Input Voltage
208V 3PH
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
165 - 240V
Efficiency at Full Load
93.2 %
Other Input Voltages
220
Maximum Input Current
27.0A
Input Power Factor at Full Load
0.98
Batteries Runtime Battery type
VRLA
Included Battery Modules
1
Typical recharge time
5hour(s)
Battery Slots Empty
1
Expected Battery Life (years)
3 - 5 RBC Quantity
1
Extendable Run Time
1
Extended Run Options
APC-Smart-UPS-VT-10kVA-208V-w-1-Batt-Mod-Exp-to-2-Start-Up-5X8-Int-Maint-Bypass-Parallel-Capable
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications Management
Interface Port(s)
DB-9 RS-232, SmartSlot
Pre-Installed SmartSlot Cards
AP9631
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Physical
Color
Black
Environmental
Operating Temperature
32 - 104 oF (0 - 40 oC)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-50 - 40 oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
54.0dBA
Online thermal dissipation
2047.0BTU/hr
Protection Class
NEMA 1
Conformance
Sustainable Offer Status
Proposition 65 Warning
Available in Documentation tab
Item Dimension ( L inchxW inchxH inch)
42 x 65 x 26 Weight
739 lb Warranty Information
1 year on-site repair or replace with factory authorized Start-UP

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • APC - Schneider Electric
  • SUVTP10KF1B2S
  • 731304259688
  • New
  • 45 lbs
  • 1643 X 1062 X 650
  • May 09, 2026
  • Jul 22, 2020
  • 12
Product Identifiers: Brand: Apc - Schneider Electric • Part #: SUVTP10KF1B2S • UPC: 731304259688 • Category: Uninterruptible Supplies
