SURTD6000RMXLP3U - Apc - Schneider Electric UPS - RACK-MOUNTABLE - 208V - 4.2 KW - (4) NEMA 5-20R; (1) NEMA L14-30R; (1)

New $8,801.39 New $8,635.47

2 Available
Condition: New

$8,801.39  $11,881.88

AUTHORIZED
Need 10+? Request a volume quote

Product Overview

A L6-30R - BLACK

Expert Overview

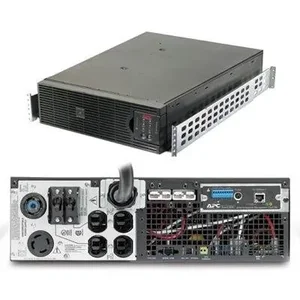

The APC Smart-UPS RT 6000VA Rack-Mountable UPS provides uninterruptible power for critical business and IT hardware. This double conversion online UPS delivers a sine wave output, ensuring consistent, clean power for sensitive electronics. With a 4200 Watts / 6000 VA capacity, it supports equipment requiring 120V, 208V, or 240V output, configurable by the user. Input is 208V via a NEMA L14-30P connection, with an auto-sensing frequency range of 50/60 Hz +/- 5 Hz. Output connections include four NEMA 5-20R, one NEMA L14-30R, and one NEMA L6-30R. The unit features an internal automatic and manual bypass, along with an EPO function for emergency shutdowns. Communication is managed through RJ-45 10/100 Base-T and a pre-installed AP9631 SmartSlot card. The SURTD6000RMXLP3U is suitable for environments where power stability and continuous operation are essential, mitigating risks from power fluctuations and outages.

Technical Specifications

Output
Output Power Capacity :4200 Watts / 6000 VA
Max Configurable Power :4200 Watts / 6000 VA
Nominal Output Voltage :120V, 208V
Output Voltage Note :Configurable for 208 or 240 nominal output voltage
Efficiency at Full Load :90.0% Output Voltage Distortion :Less than 2%
Output Frequency (sync to mains) :50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages :240
Crest Factor :3 : 1
Topology :Double Conversion Online Waveform Type :Sine wave

Output Connections :
(4) NEMA 5-20R
(1) NEMA L14-30R
(1) NEMA L6-30R

Bypass :Internal Bypass (Automatic and Manual) Input
Nominal Input Voltage :208V
Input Frequency :50/60 Hz +/- 5 Hz (auto sensing)
Input Connections :NEMA L14-30P
Cord Length :3.05 meters
Input voltage range for main operations :156 - 236V
Input voltage adjustable range for mains operation :85 - 136V
Other Input Voltages :240 Batteries and Runtime
Battery Type :Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules :2
Typical recharge time :2.50 hour(s)
Replacement Battery :RBC44
RBC Quantity :1
Extended Run Options :APC Smart-UPS RT 6000VA RM 208V to 208/120V Communications and Management
Interface Port(s) :RJ-45 10/100 Base-T, SmartSlot
Pre-Installed SmartSlot Cards:AP9631
Control panel :LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm :Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) :Yes Surge Protection and Filtering
Surge energy rating :480 Joules
Filtering :Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Conformance
Regulatory Approvals :CSA, FCC Part 15 Class A, UL 1778

Sustainable Offer Status
RoHS :Compliant
REACH :REACH: Contains No SVHCs
Battery Directive :Compliant
Battery Notes :Contains Lithium Battery Item Dimension (L"xW"xH"):
13.68 x 23.73 x 68.60

Weight:
158.66 lb

Warranty Information:
2 years repair or replace

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • APC - Schneider Electric
  • SURTD6000RMXLP3U
  • B001UHM8PW
  • 731304258827
  • New
  • 128 lbs
  • 36 X 14 X 24
  • Today - Sep 01, 2026
  • Oct 27, 2010
  • Yes
  • Philippines
Product Identifiers: Brand: Apc - Schneider Electric • Part #: SURTD6000RMXLP3U • UPC: 731304258827 • ASIN: B001UHM8PW • Category: Business & Industrial • TAA Compliant

Frequently Asked Questions

What types of output connections does this UPS provide?

The UPS provides four NEMA 5-20R outlets, one NEMA L14-30R outlet, and one NEMA L6-30R outlet for connecting equipment.

What is the nominal input voltage required for this UPS?

The nominal input voltage for this UPS is 208V, with an input connection type of NEMA L14-30P.

What is the typical recharge time for the batteries?

The typical recharge time for the maintenance-free sealed Lead-Acid batteries included with this UPS is 2.50 hours.

Does this UPS offer surge protection?

Yes, the UPS includes surge protection with a rating of 480 Joules and full-time multi-pole noise filtering.
