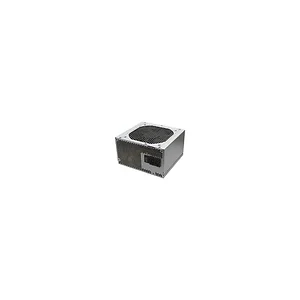

Seasonic SSP-350ST 350W 80 PLUS Bronze ATX12V v2.3 Power Supply w/ Active PFC

Specifications

• Mfr Part Number: SSP-350ST
• Features:
  • Specification compliance - ATX12V v2.3
  • Support the latest Intel & AMD Socket
  • PCI Express & Serial ATA ready
  • Double forward converter circuit
  • DC to DC converter design (3.3V only)
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection & Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
• Maximum Power: 350 W
• Input:
  • Current: 100A max
  • Frequency: 50/60Hz
• Type: ATX12V v2.3
• Power Factor Correction: Active PFC, >95% typical
• Efficiency: ≥82% (at normal input voltage)
• MTBF: >100,000 hours
• Output: +3.3V @ 12A, +5V @ 16A, +12V @ 27A, -12V @ 0.3A, +5Vsb @ 2A
• Connectors: 1x 20+4pin Main Power Connector, 1x 4+4 pin ATX12V Power Connector, 1x SATA Connector, 1x HDD Connector, 1x FDD Connector
• Safety: UL, TUV, CB, CCC, BSMI
• EMC: CE, FCC, C-tick
• Dimension (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 150.0 x 86.0 mm
