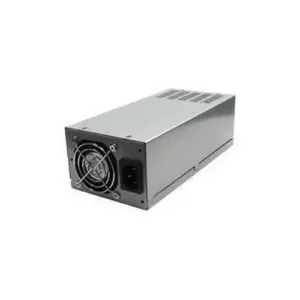

Product Overview
Technical InformationSpecification Compliance: ATX12V/EPS12VEfficiency: 84.7%Power Factor Correction (PFC): ActiveNumber of Fans: 1Protection Type: Short Circuit, Over Power, Over VoltageModular: YesReliabilityMTBF: 100000 HourPower DescriptionInput Voltage Type: ACInput Voltage: 110 V AC, 220 V ACInput Voltage Range: 90 V AC to 264 V ACNumber of +12V Rails: 3Output Voltage: 3.3 V DC @ 20 A, 5 V DC @ 25 A, 12 V DC @ 15 A, 12 V DC @ 17 A, -12 V DC @ 800 mA, 5 V DC @ 2 AOutput Power: 600 WInterfaces/PortsReceptacles: 1 x ATX Motherboard, 4-pin ATX12V Motherboard, 8-pin EPS12V MotherboardPhysical CharacteristicsForm Factor: Rack-mountableHeight: 2.7"Width: 3.9"Depth: 10.6"MiscellaneousEnvironmentally Friendly: YesEnvironmental Certification: WEEE, RoHS, 80 PlusCountry of Origin: ChinaWarrantyLimited Warranty: 5 Year
Technical Specifications
Features: -- Compliance to ATX12V V2.0 & EPS2U V2.1 -- Dedicated output voltage lines -- Triple +12V outputs -- No minimum load on +3.3V rail -- 80% super high efficiency -- Easy swap connector design Input Voltage -- 90VAC to 264VAC, full range Input Frequency -- 47 to 63Hz Input Current -- 10A maximum Inrush Current -- 100A max., 25°C ambient Total Power -- 600W Peak Power -- 660W max for 1 second min Dynamic DC Characteristics -- ±10% max. excursion for 30% max load change with return to reg in 0.5mS Total Power Protection -- 135% max with shut down and latch off protection Short Circuit Protection: -- Short on +3.3, +5, +12 & -12V will shut down these outputs only -- Short on +5Vsb will shut down all outputs Power Good Signal: -- Open collector +5Vdc, TTL compatible
