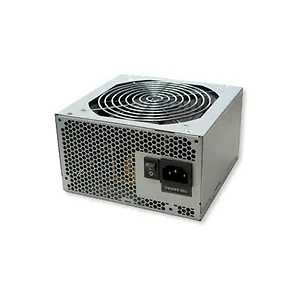

Seasonic SS-500ET BRONZE SS-500ET 500W 80 Plus Bronze ATX12V Power Supply

Specifications

• Mfr Part Number: SS-500ET BRONZE
• Features:
  • Specification compliance: ATX 12V v2.2

  • Support the latest Intel & AMD Socket
  • PCI Express & Serial ATA ready
  • Double forward converter circuit
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
  • Energy-Efficient : 80 PLUS BRONZE Certified
• Total Power: 500 W
• Input Voltage: 100-240 V
• Input Frequency Range: 50 - 60 Hz
• Power Factor Correction: Active PFC, 99% typical
• Safety: CUL, TUV, CB, UL, CCC
• EMI/RFI: CE, FCC, C-tick
• Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 17A, +12V2 @ 17A, -12V @ 0.8A, +5Vsb @ 2.5A
• Connector: 1x 24/20pin Main Power Connector; 1x 8/4pin ATX12V Connector; 1x 4pin ATX12V Connecter; 2x 6pin PCI-Express; 4x SATA
• Cooling System: 1x 12cm Double Ball Bearing Fan
• 80 PLUS BRONZE Certified

• Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
• RoHS Compliant
• OEM Seasonic Power Supply doesn't come with Power Cord. Need to bundle with item # POWERCORDS (6 ft Power cord)
