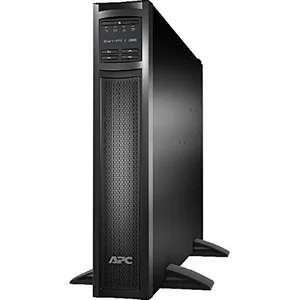

Apc - Schneider Electric SMX2KRMLVNCUS THIS APC SMART-UPS IS DESIGNED FOR IT MANAGERS OR NETWORK ADMINISTRATORS TO MAIN

Output
Max Configurable Power (Watts)
1.8kWatts / 1.92kVA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
100, 110, 127
Topology
Line Interactive
Waveform type
Sine wave
Transfer Time
4ms typical : 8ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
70 - 153V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1 Other Input Voltages
100, 110, 127
Batteries and Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
3hour(s)
Replacement Battery
APCRBC117
Expected Battery Life (years)
3 - 5
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
690
Extended Run Options
APC-Smart-UPS-X-2000VA-Rack-Tower-LCD-100-127V-with-Network-Card-TAA
Communications and Management
Interface Port(s)
RJ-45 Serial, Smart-Slot, USB
Pre-Installed SmartSlot^TM Cards
AP9631
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating
540Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Color
Black
Environmental
Operating Temperature
32 - 104^oF (0 - 40^oC)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 45^oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
203.0BTU/hr
Conformance
Approvals
BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TAA compliance, TUV, UL 1778, VCCI Class A
Equipment protection policy
Lifetime : 150000 Dollar
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains SVHCs
Proposition 65 Warning
Available in Documentation tab
Item Dimension (L"xW"xH")
35 x 10 x 24
Weight
99.79 LB
Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery
