2 Available / 1 Sold
Condition: New
UPS (rack-mountable / external) - AC 120 V - 1800 Watt - 1920 VA - Ethernet 10/100 RS-232 USB - input: NEMA 5-20 - output connectors: 10 - 4U - black - with APC UPS Network Management Card AP9631

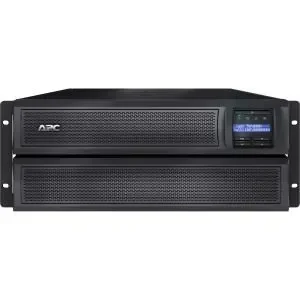

The APC SMART-UPS X 2000VA RACK/TOWER LCD is a line-interactive uninterruptible power supply designed for business and IT environments. This unit, part number SMX2000LVNC, provides 1800 Watts / 1920 VA of power protection for critical equipment. It operates at 120V and delivers a sine wave output, ensuring compatibility with sensitive electronics. The UPS is suitable for rack-mountable or external deployment, occupying 4U of rack space. It features 10 output connectors, including NEMA 5-20R, NEMA L5-20R, and NEMA 5-15R types, all providing battery backup. Connectivity options include Ethernet 10/100, RS-232, and USB, with an included APC UPS Network Management Card AP9631 for remote monitoring and management. This system helps maintain operational continuity by protecting against power fluctuations and outages, providing a typical transfer time of 4ms to battery power.
Output power capacity
1.8 KWatts / 1.92 kVA Max Configurable Power (Watts)
1.8 KWatts / 1.92 kVA Nominal Output Voltage
120V Output Voltage Distortion
Less than 5% Output Frequency (sync to mains)
50/60Hz +/- 3 Hz Topology
Line Interactive Waveform type
Sine wave Output Connections
(3) NEMA 5-20R (Battery Backup)
(1) NEMA L5-20R (Battery Backup)
(6) NEMA 5-15R (Battery Backup) Transfer Time
4ms typical : 8ms maximum Nominal Input Voltage
120V Input frequency
50/60 Hz +/- 3 Hz (auto sensing) Input Connections
NEMA 5-20P Cord Length
8ft ( 2.44meters ) Input voltage range for main operations
70 - 153V Input voltage adjustable range for mains operation
75 - 154V Number of Power Cords
1 Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules
1 Typical recharge time
3hour(s) Replacement Battery
CURK143-01-04
The UPS offers a total of 10 output connections, consisting of three NEMA 5-20R, one NEMA L5-20R, and six NEMA 5-15R receptacles. All of these connections provide battery backup.
This UPS includes an APC UPS Network Management Card AP9631. This card enables network connectivity via Ethernet 10/100 for remote monitoring and management capabilities.
The maximum configurable power for this UPS is 1800 Watts or 1.92 kVA. It is designed to provide stable power to connected equipment within these limits.
The typical recharge time for the maintenance-free sealed Lead-Acid battery is 3 hours. This ensures the UPS is ready to provide backup power again after a discharge event.
SMX2000LVNC - Apc - Schneider Electric APC SMART-UPS X 2000VA RACK/TOWER LCD - LINE-INTERACTIVE - 120 V - 1800WATT - SE
