SRT5KXLT-5KTF - Apc - Schneider Electric APC SMART-UPS ON-LINE - UPS - RACK/TOWER - 8 NEMA 5-20R 4 NEMA L6-20R 2 NEMA L6

Special Order
Ships in 1-2 weeks
Condition: New

$8,026.17  $10,835.33

AUTHORIZED
Need 10+? Request a volume quote

Product Overview

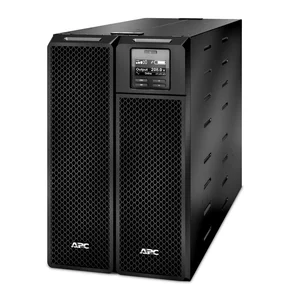

APC SMART-UPS ON-LINE - UPS - RACK/TOWER - 8 NEMA 5-20R 4 NEMA L6-20R 2 NEMA L6-

Expert Overview

The APC SMART-UPS ON-LINE is an uninterruptible power supply (UPS) designed for critical IT infrastructure, offering reliable power protection in rack or tower configurations. This double conversion online UPS provides a consistent sine wave output, isolating connected equipment from power fluctuations, sags, and surges. With an output capacity of 4.25 KWatts / 5.0 kVA, it supports nominal output voltages of 120V and 208V, with additional 240V output. Input is rated at 208V via a NEMA L6-30P connection. The unit features multiple output connections, including (8) NEMA 5-20R, (1) NEMA L14-30R, (2) NEMA L6-30R, and (4) NEMA L6-20R, all with battery backup. It includes a maintenance-free sealed lead-acid battery with an expected life of 3-5 years and a typical recharge time of 1.5 hours. Management is facilitated via RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, and USB interface ports, with a multi-function LCD console for status monitoring. The SRT5KXLT-5KTF is suitable for businesses requiring continuous power to sensitive electronics, servers, and networking equipment, mitigating data loss and operational downtime.

Technical Specifications

Output
Output power capacity: 4.25 KWatts / 5.0 kVA
Max Configurable Power (Watts): 4.25 KWatts / 5.0 kVA
Nominal Output Voltage: 120V, 208V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 240
Topology: Double Conversion Online
Waveform type: Sine wave
Output Connections:
(8) NEMA 5-20R (Battery Backup)
(1) NEMA L14-30R (Battery Backup)
(2) NEMA L6-30R (Battery Backup)
(4) NEMA L6-20R (Battery Backup)
Bypass: Internal Bypass (Automatic and Manual) Input
Nominal Input Voltage: 208V
Input frequency: 40 - 70 Hz (auto sensing)
Input Connections: NEMA L6-30P
Cord Length: 10ft ( 3.05meters )
Input voltage range for main operations: 160 - 275V
Input voltage adjustable range for mains operation: 100 - 275 (half load)V
Other Input Voltages: 240 Batteries and Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time: 1.5hour(s)
Nominal Battery Voltage: 192V
Replacement Battery: APCRBC140
Expected Battery Life (years): 3 - 5
Extendable Run Time: 1
Extended Run Options: APC-Smart-UPS-SRT-5000VA-with-208-240V-to-120V-Step-Down-Transformer Communications and Management
Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Available SmartSlot Interface Quantity: 1 Surge Protection and Filtering
Surge energy rating: 480Joules Physical
Color: Black Environmental
Operating Temperature: 32 - 104 oF ( 0 - 40 oC )
Operating Relative Humidity: 0 - 95% non-condensing %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -15 - 45 oC
Storage Relative Humidity: 0 - 95% non-condensing %
Storage Elevation: 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 1047.0BTU/hr
Protection Class: IP 20 Conformance
Approvals: CSA C22.2 No.107.3-05, ENERGY STAR V1.0 (USA), FCC Part 15 Class A, UL 1778 Sustainable Offer Status
RoHS: Compliant
REACH: REACH: Contains No SVHCs
Battery Directive: Compliant Item Dimension (L"xW"xH")
27 x 24 x 39

Weight
282 lbs

Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • APC - Schneider Electric
  • SRT5KXLT-5KTF
  • B0CND6CXZ8
  • 731304739814
  • New
  • 282 lbs
  • 48 X 31 X 40
  • Aug 29, 2026
  • Dec 23, 2016
  • China
Product Identifiers: Brand: Apc - Schneider Electric • Part #: SRT5KXLT-5KTF • UPC: 731304739814 • ASIN: B0CND6CXZ8 • Category: Uninterruptible Supplies

Frequently Asked Questions

What are the primary output voltage options for this UPS?

The UPS provides nominal output voltages of 120V and 208V. It also supports an additional output voltage of 240V.

What types of output connections are available on this UPS?

This UPS includes (8) NEMA 5-20R, (1) NEMA L14-30R, (2) NEMA L6-30R, and (4) NEMA L6-20R output connections, all with battery backup.

What is the expected battery life and recharge time for the included battery?

The maintenance-free sealed lead-acid battery has an expected life of 3 to 5 years. The typical recharge time for the battery is 1.5 hours.

What communication and management interfaces does this UPS offer?

The UPS features RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, and USB interface ports for communication and management. It also has a multi-function LCD status and control console.
