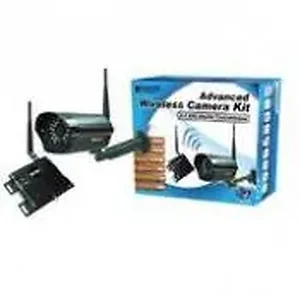

Kworld SEC-CAM_WLP614M1 WL CMOS CAMERA KIT 2.4GHZ DIGITAL PLUS UP TO 150M

Specifications

• Mfr Part Number: WLP614M1
• Features:
  • WLP614M1 Features Advanced MPEG4 wireless transmission
  • Easy plug & play on TV or DVR
  • One by one auto-pairing ID
  • Anti-Interference Video with Privacy Secured
  • Robust anti-interference capability
  • Transmission distance up to 150 meters in open site
  • VGA Real-Time Transmission
  • Easy to connect with TV for viewing or DVR/VCR for recording
• Wireless Video Transmitter (WL614MT):
  • Image Sensor: 1/4 CMOS
  • Horizontal Resolution: 420 TV Lines
  • Video Compression: MPEG4
  • Transmission Mode: Digital
  • Antenna: Omni-directional 3dBi
  • Max.Transmission Range: Up to 150 Meters
  • Frequency: 2.4 ~ 2.525GHz FHSS
  • Frequency Modulation: GMSK (the same with cell phone frequency modulation tech)
  • Lens: Standard fixed lens 6mm
  • Lens Angle: 53 degree
  • Backlight Compensation: Yes
  • Shutter Speed: 1/60 - 1/15,000 NTSC; 1/50 - 1/15,000 PAL
  • IR LED: 24pcs Infrared LED
  • Waterproof: Nom
  • S/N Ratio: More than 48dB (AGCOFF)
  • Minimum Illumination: While Infrared LED ON 0 lux
  • Sync System: Internal Synchronization
  • Infrared Wavelength: 850mm
  • Night Vision Distance: 20M
  • Power Consumption: When the infrared lamps turned on, the max electric current is 280mA
  • Power Source: DC 12V / 0.5A for AC Adapter
• Wireless Video Receiver (WLM01R):
  • Transmission Mode: Digital
  • Antenna: Omni-directional 3dBi
  • Max. Transmission Range: Up to 150 Meters
  • Frequency: 2.4 ~ 2.525GHz FHSS
  • Frequency Modulation: GMSK ( the same with cell phone frequency modulation tech)
  • System of Signal: PAL / NTSC
  • Display Effective Pixels:
    • VGA: 640x480@30fps(NTSC); 640x480@25fps(PAL)
    • QVGA: 320x240@30fps(NTSC); 320x240@25fps(PAL)
  • Video Output: 1x Composite
  • Transmission Channels: 1
  • Battery Power Option: No
  • Power Consumption: The max electric current is 100mA
  • Power Source: DC 12V / 0.5A for AC Adapter
• Package Contents: Wireless Video Transmitter (Camera), Bracket, Screw Kit, 2x Antenna, Wireless Video Receiver, 2x Adapter, RCA Cable, RCA to BNC Adapter, User Manual
