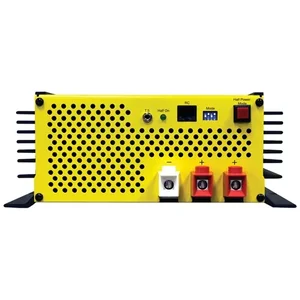

SEC-1280UL - Samlex America 80A Dual Bank 12V Battery Charger with Temp Sensor

80A Dual Bank 12V Battery Charger with Temperature Sensor

This fully automatic 80 Amp battery charger is designed for charging various types of 12 Volt lead-acid batteries, including Flooded, AGM, and Gel Cell. Powered by either a 120 V, 60 Hz or 230 V, 50 Hz AC source, it features a DIP switch for switching to a two-stage charging algorithm for DC loads. The unit can also function as a DC Power Supply and is equipped with multiple protective features such as overload, short-circuit, and over-temperature protection.

Key Features:

• High-efficiency switch mode technology for quiet and lightweight operation.
• Automatically charges all types of Lead Acid Batteries: Flooded, AGM, or Gel Cell.
• Simultaneously charges two battery banks without requiring an isolator.
• Functions as a power supply or DC UPS when used with a battery.
• User-friendly AC input voltage configuration: 120 VAC or 230 VAC, 50/60 Hz.
• DIP switch selectable for 2 or 3 stage charging for both standalone and loaded Lead Acid Batteries.
• “Half Power Mode” reduces the max charging current to safely charge lower capacity batteries.
• Integrated voltmeter and ammeter for real-time monitoring.
• Fan cooled based on the output current for enhanced performance.
• Built-in protections against short circuits, overloads, reverse battery connections, and overheating.
• Includes a temperature sensor to prevent under or overcharging during temperature fluctuations.

The Samlex America SEC-1280UL is an 80 Amp, dual-bank 12V battery charger engineered for maintaining and charging various lead-acid battery types, including Flooded, AGM, and Gel Cell. It operates from either a 120 V, 60 Hz or 230 V, 50 Hz AC source, offering flexibility for different power environments. This unit is suitable for IT professionals and businesses requiring reliable battery management for critical systems or equipment utilizing 12V lead-acid batteries. Key features include the ability to simultaneously charge two battery banks without an isolator, and a DIP switch for selecting two or three-stage charging algorithms, accommodating both standalone batteries and those under DC loads. It also functions as a DC power supply or DC UPS when paired with a battery, providing continuous power. Integrated protections against overload, short-circuit, reverse battery connections, and over-temperature enhance operational safety and battery longevity.
