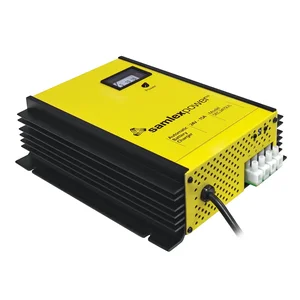

SEC-2415UL - Samlex America 15A 24V 3-Bank 3-Stage Battery Charger with Dip Switch

15A 24V 3-Bank 3-Stage Battery Charger with Dip Switch

This advanced fully automatic three-stage 15 Amp battery charger is designed for charging various types of 24 Volt lead-acid batteries, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell types, all from a standard 120 V, 60 Hz or 230 V, 50 Hz AC source. The DIP switch setting allows conversion to a two-stage algorithm for charging batteries connected to a DC load (DC UPS). It can also function as a DC Power Supply, featuring overload, short-circuit, and over-temperature protections. This model supports the simultaneous charging of up to 3 separate battery banks.

Features:

• High efficiency design
• Commercial-grade construction
• Lightweight and portable
• Quiet operation
• Proven design with thousands of units in use
• Selectable 2 or 3 stage charging
• User-selectable input of 120 or 230 VAC, 50/60 Hz
• Voltage meter display with ammeter and LED power status
• Compatible with all Lead Acid battery types
• Can charge while connected to a load or used standalone
• Functions as a power supply or DC UPS
• Universal Protection Circuit for safety
• Charge 3 banks simultaneously without the need for an isolator

The Samlex America SEC-2415UL is a 15 Amp, 24 Volt, three-bank battery charger designed for IT and commercial environments requiring reliable power management. This unit supports simultaneous charging of up to three separate lead-acid battery banks, including Flooded, AGM, and Gel Cell types, from either a 120 V, 60 Hz or 230 V, 50 Hz AC source. Its three-stage charging algorithm can be converted to a two-stage algorithm via DIP switch for applications where batteries are connected to a DC load, functioning as a DC UPS. The charger also operates as a DC power supply, incorporating overload, short-circuit, and over-temperature protections. This commercial-grade, high-efficiency unit is suitable for maintaining critical 24V battery systems, offering flexibility for various operational setups.
