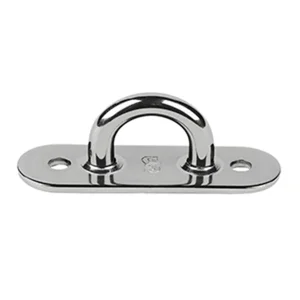

Stainless Steel Welded Pad Eye - 3"L x 1"W
Specifications:
The Schaefer Stainless Steel Welded Pad Eye, part number 78-01, is a durable component designed for secure attachment points. Measuring 3 inches in length and 1 inch in width, this pad eye features a welded stainless steel construction for robust performance. It is suitable for applications requiring a fixed anchor point with a Safe Working Load (SWL) of 2500 lbs (1135 kg).
This product is intended for IT and facilities managers who need reliable mounting hardware for securing equipment, cable management, or other fixtures in demanding environments. Its specifications, including an eye width and height of 7/8 inch (22 mm) and 1/4 inch (6 mm) eye stock, allow for various lashing or attachment methods. The unit is secured via two 1/4 inch RH fasteners, spaced 2-3/16 inches (55 mm) center-to-center, providing a stable installation solution.
The attachment eye has a width of 7/8 inch (22 mm) and a height of 7/8 inch (22 mm). The eye stock, or thickness of the material forming the eye, is 1/4 inch (6 mm).
This pad eye has a Safe Working Load (SWL) of 2500 lbs (1135 kg). This indicates the maximum load it can safely support under normal operating conditions.
The pad eye requires two 1/4 inch RH fasteners for installation. The center-to-center spacing for these fasteners is 2-3/16 inches (55 mm).
The overall length of the pad eye is 3 inches (76 mm), and its overall width is 1 inch (25 mm). It weighs 3.25 oz (92 g).
78-01 - Schaefer Marine Schaefer Stainless Steel Welded Pad Eye - 3"L x 1"W
