705-92 - Schaefer Marine Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1/4" T-Track

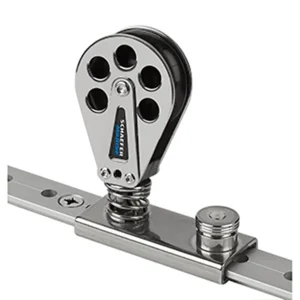

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
• Max. Boat Length 33' (10 m)
• Max. Boat Weight 12000 lbs. (5455 kg)
• Max. Sail Area 520 sq. ft. (48 m2)
• Sheave Diameter 2-3/8" (60 mm)
• Max Line 1/2" (12 mm)
• Length 4" (102 mm)
• Width 1-9/16" (39 mm)
• Height 4-15/16" (126 mm)
• Bearing Height 2-3/8" (67 mm)
• SWL 2250 lbs. (1020 kg)
• Weight 14 oz. (397 g)

The Schaefer Spring Loaded/Lined Slide/Stainless Steel, part number 705-92, is designed for use with 1-1/4" T-Track systems. This component is suitable for marine applications, specifically for boats up to 33 feet in length and with a maximum weight of 12,000 lbs. It supports a maximum sail area of 520 sq. ft. The slide features a Delrin sheave for smooth operation and a high safe working load of 2250 lbs. Its construction includes stainless steel cheeks and a stainless steel slider, contributing to its reliability in demanding environments. A polyethylene liner and pin stop mechanism facilitate straightforward adjustments, which can be beneficial for managing sail systems. This product addresses the need for a durable and adjustable slide mechanism in marine rigging, providing a functional solution for specific boat sizes and track dimensions.
