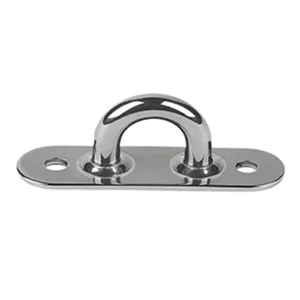

78-05 - Schaefer Marine Schaefer Stainless Steel Welded Pad Eye - 2-1/4"L x 5/8"W

Stainless Steel Welded Pad Eye - 2-1/4"L x 5/8"W

Specifications:

• Eye Width 1/2" (13 mm)
• Eye Height 1/2" (13 mm)
• Eye Stock 1/4" (6 mm)
• Length 2-1/4" (57 mm)
• Width 5/8" (16 mm)
• Fasteners (2), #10 RH (5 mm)
• C/C 1-11/16" (42 mm)
• SWL 750 lbs. (350 kg)
• Weight 1.75 oz. (50 g)

The Schaefer Stainless Steel Welded Pad Eye, part number 78-05, is a hardware component designed for secure attachment points in various applications. Constructed from stainless steel, this pad eye offers durability and resistance to environmental factors. Its dimensions are 2-1/4" in length and 5/8" in width, with an eye width and height of 1/2" each. The eye stock measures 1/4". This component is suitable for IT environments or facilities requiring robust, fixed attachment points for securing equipment, cabling, or other infrastructure elements. It provides a Safe Working Load (SWL) of 750 lbs. (350 kg), making it appropriate for moderate load-bearing tasks. Installation requires two #10 RH (5 mm) fasteners, with a center-to-center spacing of 1-11/16". Weighing 1.75 oz. (50 g), it is a lightweight yet strong solution for creating reliable tie-down or anchor points.
