504-82 - Schaefer Marine Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track

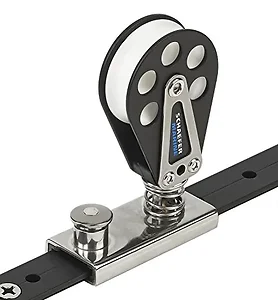

Spring Loaded/Lined Slide/Aluminum for 1" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size 1" x 1/8" (25 mm x 3 mm)
• Max. Boat Length- 27' (8m)
• Max. Boat Weight- 5000 lbs. (2270 kgs)
• Sail Area- 315 sq. ft (29 m2)
• Sheave Diameter 2" (51 mm)
• Max Line 7/16" (11 mm)
• Length 3" (76 mm)
• Width 1-1/4" (31 mm)
• Height 4-5/32" (105 mm)
• Bearing Height 2-7/32" (56 mm)
• SWL 1750 lbs. (795 kg)
• Weight 7.0 oz. (198 g)

The Schaefer Spring Loaded/Lined Slide/Aluminum, part number 504-82, is a specialized component designed for marine applications requiring reliable movement on a 1-inch T-Track. This unit is constructed with anodized aluminum cheeks and a stainless steel slider, ensuring durability in marine environments. Its Delrin sheave facilitates smooth operation and supports a safe working load (SWL) of 1750 lbs. The integrated polyethylene liner and pin stop mechanism allow for straightforward adjustments.

This slide is suitable for boats up to 27 feet in length and a maximum weight of 5000 lbs, with a sail area not exceeding 315 sq. ft. It accommodates a maximum line diameter of 7/16 inches. The component is intended for IT hardware resellers serving clients in the marine sector who require specific bearing and bushing parts for track systems.
