2 Available
Condition: New

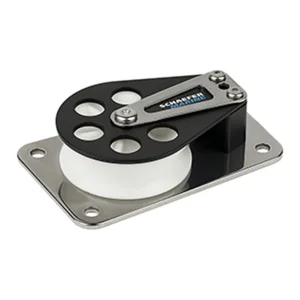

Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
The Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave, part number 704-11, is a component designed for applications requiring reliable load management. This unit features a Delrin sheave, engineered for smooth operation and to support high safe working loads. The stainless steel base is designed to distribute loads across a broad surface area, contributing to its stability in demanding environments.
This product is suitable for IT hardware resellers or businesses that integrate specialized components into their solutions, particularly where the physical handling of lines or cables under load is a requirement. It addresses the need for a durable and efficient sheave system capable of withstanding significant weight while maintaining operational smoothness. The construction focuses on functional reliability rather than advanced electronic features, making it appropriate for mechanical integration tasks.
Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
The Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave is designed to accommodate a maximum line diameter of 1/2 inch (13 mm).
This sheave has a Safe Working Load (SWL) of 2250 lbs. (1020 kg), indicating its capacity for handling significant loads.
The sheave features a Delrin sheave for smooth operation, aluminum cheeks, and a stainless steel base designed to distribute loads effectively.
The unit requires four 1/4 RH (6 mm) fasteners. The center-to-center (C/C) measurements are 3-5/8 inches (92 mm), with 2 inches (51mm) for the wide end and 1-9/16 inches for the narrow end.
704-11 - Schaefer Marine Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
