78-83 - Schaefer Marine Schaefer Removable Eye Deck Plate/Assembly

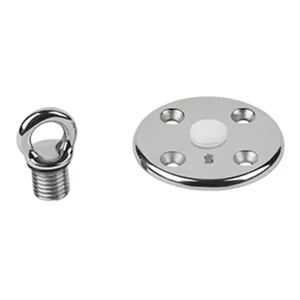

Removable Eye Deck Plate/Assembly

Specifications:

•  Eye Width 5/8" (16 mm)
• Eye Height 5/8" (16 mm)
• Eye Stock 1/4" (6 mm)
• Length 3" (76 mm)
• Width 3" (76 mm)
• Fasteners (4), 1/4" FH (6 mm)
• C/C A 2" (51 mm)
• C/C B 2" (51 mm)
• SWL 2250 lbs. (1020 kg)
• Weight 9.5 oz. (269 g)
• Deck plate hole is 3/4"-10

The Schaefer Removable Eye Deck Plate/Assembly is a hardware component designed for secure, temporary attachment points on a deck surface. This assembly provides a removable eye, allowing for flexibility in deck configuration when an attachment point is not continuously required. It is suitable for applications that need a robust, yet adaptable, tie-down or securing point with a Safe Working Load (SWL) of 2250 lbs. (1020 kg). The unit features a 3-inch by 3-inch footprint and requires four 1/4" FH fasteners for installation, with a center-to-center spacing of 2 inches. The deck plate itself accommodates a 3/4"-10 hole. This product, part number 78-83, is intended for marine or industrial environments where a strong, removable eye is beneficial for managing lines, securing equipment, or creating temporary rigging points, without the permanent protrusion of a fixed eye.
