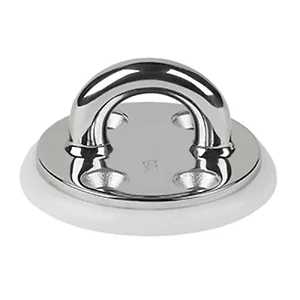

78-07 - Schaefer Marine Schaefer Investment Cast Pad Eye - 2-1/2" OD Base

Investment Cast Pad Eye - 2-1/2" OD Base

316 Stainless Steel includes delrin(tm) base. Order Backing Plate 97-53 separately.

Specifications:

• Eye Width 1" (25 mm)
• Eye Height 13/16" (21 mm)
• Eye Stock 3/8" (10 mm)
• Length 2-1/2" (64 mm)
• Width 2-1/2" (64 mm)
• Fasteners (4), 1/4" FH (6 mm)
• C/C A 1" (25 mm)
• C/C B 1-1/2" (38 mm)
• SWL 4000 lbs. (1800 kg)

The Schaefer Investment Cast Pad Eye, part number 78-07, is a robust attachment point designed for demanding applications requiring secure fastening. Constructed from 316 stainless steel, this pad eye features a 2-1/2" OD base and includes a Delrin base for enhanced durability. It is engineered to provide a reliable anchor point with a Safe Working Load (SWL) of 4000 lbs (1800 kg). This component is suitable for IT hardware resellers or businesses that integrate specialized marine-grade hardware into their solutions, particularly for custom enclosures, industrial rigging, or secure mounting in challenging environments where corrosion resistance and high load capacity are critical. The pad eye's specifications, including a 1" eye width and 13/16" eye height, allow for various attachment methods, addressing needs for secure, fixed-point connections.
