SC-AOB-A2 - Scanstrut ATMOS 12V Marine Air Station

ATMOS 12V Marine Air Station

Transform your boating adventures with the Scanstrut ATMOS, a built-in air station designed to elevate your experiences on the water.

The ATMOS air station effortlessly inflates paddleboards, towables, and more with just a push of a button. Simply set your desired pressure, and let ATMOS handle the rest.

Built with Scanstrut’s advanced outdoor technology, this air station is waterproof and tailored for the challenging marine environment.

Two-Stage Pump Technology

Employing Brushless Technology, ATMOS features a unique two-stage pump system that efficiently manages the rigorous demands of marine use. The initial stage utilizes a fan motor for high-volume airflow, transitioning to a piston pump for high-pressure output as needed.

Stage 1: High-Volume, Low-Pressure (HVLP)

This stage is ideal for quickly inflating larger inflatables, like kayaks and towables, to a preset pressure with minimal effort.

Stage 2: High-Pressure, Low-Volume (HPLV)

Perfect for items like stand-up paddleboards, this stage provides the necessary pressure for optimal performance.

Installation Features:

• Panel mounted with self-tapping screws or bolts (not included); includes foam gasket for secure fit.
• Install at an angle of +10° to -30° from vertical.
• No end-user serviceable parts.
• Versatile positioning: install on seating areas, side panels, or control consoles. Requires a cavity depth of at least 110mm (4.33”).
• Meets ISO 8846 and SAE J1171 standards for ignition protection, ensuring safe installations across various boat types.

Product Design:

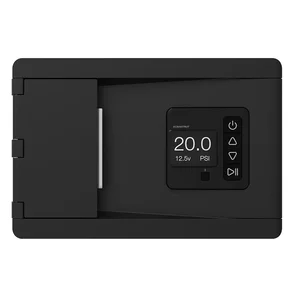

Front:

Control the air station with Soft Touch TPE buttons and a bright LCD screen, designed for marine conditions to ensure usability even with wet hands.

Back:

Compact design allows for easy installation in various locations on your boat, making the air station accessible for convenient use.

Side:

Minimum cavity depth required is 110mm (4.33”), with power cable length of 500mm (20”) and a wire gauge of 2.0mm² (14 AWG).

Environmental Features:

• Conformal-coated electronics for environmental protection.
• Robust brushless motors built for marine longevity.
• Advanced safety protections against reverse polarity, short-circuit, overload, and more.
• Certifications include CE, ROHS, UN ECE R10, and UKCA.
• IPX6 waterproof rating on both front and rear.
• Sealed airflow design for durability.

Safety Features:

• Maximum runtime of 25 minutes for multiple inflations.
• Soft motor start to protect the unit.
• Auto shut-off after 5 minutes of inactivity.
• Maximum pressure of 20 PSI / 1.4 BAR for inflation.
• Includes a 2-year warranty for peace of mind.
• Able to shut off automatically upon reaching target pressure.

Technical Specifications:

• Waterproof rating: IPX6.
• Max airflow volume: 350 LPM / 12.3 CFM below 1 PSI.
• Airflow drops to 70 LPM / 2.5 CFM between 1-20 PSI.
• Standby power consumption is only 0.01W.
• Operates within -20°C to +50°C.
• Input voltage: 12V system (10-14V).
• Max current draw: 12A (140W).
• Two-stage pumping: Stage 1 operates between 0-1 PSI, Stage 2 from 1.1 - 20 PSI.

Included in the Package:

• Heavy-duty sun cover for long-term protection against elements.
• 2.5M (8ft) hose for versatile positioning during inflation.
• Six hose attachments for various valve types, including Boston Valve and C7 Valve, ensuring compatibility with all inflatables.

The Scanstrut ATMOS 12V Marine Air Station (SC-AOB-A2) is a built-in air station designed for marine environments, providing on-demand inflation capabilities for various watercraft accessories. This unit is suitable for boat owners and marine operators who require a reliable, integrated solution for inflating items such as paddleboards, kayaks, and towables. It addresses the practical need for efficient inflation on the water, eliminating the reliance on manual pumps or external air sources.

The ATMOS features a two-stage pump system, utilizing a fan motor for high-volume, low-pressure inflation and transitioning to a piston pump for high-pressure output, up to 20 PSI. Its design includes an IPX6 waterproof rating, conformal-coated electronics, and robust brushless motors, ensuring durability and performance in challenging marine conditions. Installation is panel-mounted, requiring a minimum cavity depth of 110mm, and it meets ISO 8846 and SAE J1171 standards for ignition protection, facilitating safe integration into various boat types. Operation is managed via Soft Touch TPE buttons and an LCD screen, designed for usability even with wet hands.
