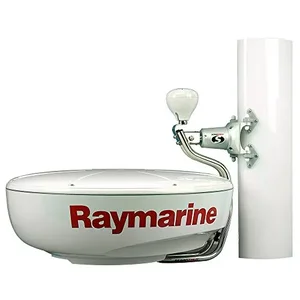

LMM-1 - Scanstrut Self Leveling Radar Mount

Self Levelling Radar Mount - Mast

Compatible Units:

• Garmin GMR18/GMR18HD/GMR24HD
• Raymarine RD218/RD424
• Lowrance 3G Broadband
• Simrad 3G Broadband
• Simrad DX45/DX60

The Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

• Hydraulic damping to eliminate minor oscillations
• Sealed system - entirely maintenance-free
• Passive system - no power required
• Reduced weight aloft - complete system weighs only 3.4 kg
• Easy upgrade from fixed mast mount - same mounting footprint as SC20 & M92722
• Attached to the mast by four swivel feet - matches the profile of any mast
• 12 point fixing - highest quality Monel rivets
• Compact mount - radar extends only minimum distance from front of mast

Materials:

• Finest quality machined and anodised aluminium mast adapter
• Marine grade 316 stainless steel cradle and base plate

Kit Includes:

• 1 x Levelling mount
• 1 x Mast Adapter
• 1 x Complete fastening pack

The Scanstrut LMM-1 Self Leveling Radar Mount is designed for marine applications to maintain optimal radar antenna performance. This mast-compatible mount addresses the challenge of target loss and image distortion caused by boat heel or roll. It keeps the radar level with the horizon, ensuring a consistent and clear radar picture.

Utilizing a hydraulic damping system, the mount reacts to significant changes in boat angle while filtering out minor oscillations. It is a passive system, requiring no external power, and features a sealed, maintenance-free design. Constructed from machined and anodized aluminum for the mast adapter and marine-grade 316 stainless steel for the cradle and base plate, the complete system weighs 3.4 kg. The mount attaches to the mast via four swivel feet, adapting to various mast profiles, and uses a 12-point fixing with Monel rivets for secure installation. It offers a compact profile, minimizing the radar's extension from the mast, and shares the same mounting footprint as SC20 and M92722 for straightforward upgrades.
