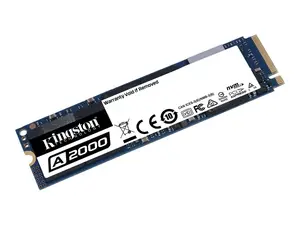

SA2000M8/1000GBK - Kingston Technology

Form factor
M.2 2280 Interface
NVMe^TM PCIe Gen 3.0 x 4 Lanes Capacities²
1TB NAND
3D Encrypted
XTS-AES 256-bit Encryption Sequential Read/Write¹
1TB up to 2,200/2,000MB/s Random 4K Read/Write¹
1TB up to 250,000/220,000 IOPS Total Bytes Written (TBW) ³
1TB 600TBW Power Consumption
.0032W Idle / .08W Avg / 1.7W (MAX) Read / 4.5W (MAX) Write Storage temperature
-40^oC - 85^oC Operating temperature
0^oC - 70^oC Vibration operating
2.17G Peak (7-800Hz) Vibration non-operating
20G Peak (20-1000Hz) MTBF
2,000,000 Note
1. Based on "out-of-box performance" using a PCIe 3.0 motherboard. Speed may vary due to host hardware, software, and usage. IOMETER Random 4K Read/Write is based on 8GB partition.

2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the product.

3. Total Bytes Written (TBW) is derived from the JEDEC Workload (JESD219A) Item Dimension (L inchxW inchxH inch)
7 x 3 x 1

Weight
1.00 LB

Warranty Information
5 Year Manufacture Warranty
