1 Available / 128 Sold
Condition: New
Kingston's KSM26RS416MEI is a 2G x 72-bit (16GB)DDR4-2933 CL21 SDRAM (Synchronous DRAM) registered w/parity, 1Rx4, ECC, memory module, based on eighteen 2G x4-bit FBGA components. The SPD is programmed to JEDECstandard latency DDR4-2933 timing of 21-21-21 at 1.2V. Each288-pin DIMM uses gold contact fingers. The electrical andmechanical specifications are as follows:

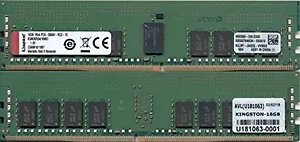

The Kingston KSM26RS4/16MEI is a 16GB DDR4-2666 ECC Registered memory module designed for server and workstation environments that require data integrity and system stability. This 288-pin DIMM operates at 1.2V and features a CL19 latency, providing a balance of performance and reliability. It is built with eighteen 2G x4-bit FBGA components and includes parity for error detection. The module's ECC (Error-Correcting Code) functionality helps to prevent data corruption, which is critical for applications where data accuracy is paramount. This memory is suitable for IT professionals and businesses looking to upgrade or expand the memory capacity of compatible systems, ensuring stable operation under demanding workloads. The gold contact fingers contribute to reliable connectivity and signal integrity. It operates within a temperature range of 0�C to +85�C.
CL(IDD)
19 cycles Row Cycle Time (tRCmin)
45.75ns(min.) Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.) Row Active Time (tRASmin)
32ns(min.) Maximum Operating Power (See IDD Specifications)
IDD Specifications
Symbol 2666 Units
IDD0 828 mA
IPP0 54 mA
IDD1 1044 mA
IDD2N 630 mA
IDD2NT 900 mA
IDD2P 450 mA
IDD2Q 540 mA
IDD3N 828 mA
IPP3N 54 mA
IDD3P 612 mA
IDD4R 2358 mA
IDD4W 2106 mA
IDD5R 1098 mA
IPP5R 90 mA
IDD6N 612 mA
IDD6E 828 mA
IDD6R 378 mA
IDD6A 154.8 mA
IDD6A 378 mA
IDD6A 558 mA
IPP6X 90 mA
IDD7 3600 mA
IPP7 324 mA
IDD8 450 mA
UL Rating
94 V - 0 Operating Temperature
0oC to +85oC Storage Temperature
-55oC to +100oC Module Assembly
DRAM:
MICRON (E-DIE)
RCD:
IDT
Item Dimension (L"xW"xH")
7 x 2 x 1
Weight
1.00 LB
Warranty Information
Lifetime Manufacture Warranty
ECC (Error-Correcting Code) memory helps detect and correct common types of internal data corruption. This feature is crucial for servers and workstations where data integrity and system stability are critical to prevent crashes and data loss.
This Kingston DDR4 memory module operates at 1.2V. This standard voltage helps ensure compatibility with systems designed for DDR4 memory.
The item dimensions are 7 inches (L) x 2 inches (W) x 1 inch (H). The module has a weight of 1.00 LB.
Yes, this Kingston memory module is backed by a Lifetime Manufacturer Warranty.
KSM26RS4/16MEI - Kingston ME KSM26RS4 16MEI 16G DDR4 2666 ECC Reg CL19 1Rx4 Retail
