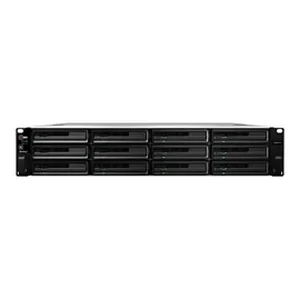

RS3617XS+ - Synology NAS RS3617xs+ RackStation 12Bay Xeon D-1531 up to 120TB Diskless Retail

Hardware Specifications:
CPU
CPU Model: Intel Xeon D-1531
CPU Architecture: 64-Bit
CPU Frequency: 6-Core 2.2 (Base) / 2.7 (Turbo) GHz
Hardware Encryption Engine (AES-NI): Yes Memory
System Memory: 8GB DDR4 ECC UDIMM
Memory Module Pre-Installed: 1 x 8GB
Total Memory Slots: 4
Memory Expandable up to: 64GB (4 x 16GB) Storage
Drive Bays: 12
Maximum Drive Bays with Expansion Unit: 36
Compatible Drive Types:
- 3.5inch SATA HDD
- 2.5inch SATA HDD
2.5inch SATA SSD
Maximum Internal Raw Capacity: 120TB (12 x 10TB HDD) (Capacity may vary by RAID Types)
Maximum Raw Capacity with Expansion Units: 360TB (36 x 10TB HDD) (Capacity may vary by RAID Types)
Maximum Single Volume Size:
- 200TB (32GB RAM Required, for RAID 5 or RAID 6 Groups Only)
- 108TB
Hot Swappable Drive: Yes External Ports
USB 3.0 Port: 2
Expansion Port: 2 File System
Internal Drives:
- Btrfs
- EXT4
External Drives:
- Btrfs
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT Others
RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover Support)
Wake on LAN/WAN: Yes
RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover Support)
PCIe Slot for Network Card: 2 x Gen3 x8 Slots (x8 Link)
System Fan: 80mm x 80mm x 4pcs
Fan Speed Mode:
- Full Speed Mode
- Cool Mode
- Quiet Mode
Easy Replacement System Fan: Yes
Wireless Support (Dongle): Yes
Power Recovery: Yes
Noise Level: 50.2 dB(A)
Scheduled Power On/Off: Yes
Power Supply Unit/Adapter: 2 x 500W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60Hz, Single Phase
Power Consumption:
- 133.9W (Access)
- 69.18W (HDD Hibernation)
British Thermal Unit:
- 456.89 BTU/hr (Access)
- 236.05 BTU/hr (HDD Hibernation)
Redundant Power Supply (for xs+ and RP Model): Yes Environment Temperature
Operating Temperature: 5 C to 35 C (40 F to 95 F)
Storage Temperature: -20 C to 60 C (-5 F to 140 F)
Relative Humidity: 5% to 95% RH Certification
FCC Class A
CE Class A
BSMI Class A DSM Specifications:
Storage Management
Maximum Internal Volume Number: 1024
Maximum iSCSI Target Number: 128
Maximum iSCSI LUN: 512
iSCSI LUN Clone/Snapshot, Windows ODX: Yes
RAID Group: Yes
Supported RAID Type: Basic, JBOD, RAID 0, 1, 5, 6, 10
RAID Migration: Basic to RAID 1, Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs: RAID 1, 5, 6
Volume Expansion by Adding a HDD: RAID 5, 6, JBOD
Global Hot Spare Supported RAID Type: RAID 1, 5, 6, 10 SSD Support
SSD Read/Write Cache: Yes
SSD Trim: Yes File Sharing Capacity
Maximum User Accounts: 16000
Maximum Group: 512
Maximum Shared Folder: 512
Maximum Shared Folder Sync Tasks: 32
Maximum Concurrent CIFS/ADP/FTP Connections: 2048
Windows Access Control List (ACL) Integration: Yes
NFS Kerberos Authentication: Yes
Higher Availability Manager: Yes
Log Center: Yes
Syslog Events per Second: 3000 Virtualization
VMware vSphere 6 with VAAI: Yes
Windows Server 2012: Yes
Windows Server 2012 R2: Yes
Citrix Ready: Yes Add-on Package
Antivirus by McAfee (Trial): Yes
Central Management System: Yes
Cloud Station Server: Yes
- Maximum Concurrent File Transfers: 2000
Maximum Concurrent File Transfers (with RAM Expansion): 10000
Docker DSM: Maximum Docker DSM Number (Licenses Required): 55 (Including 1 Free License)
Document Viewer: Yes
Download Station: Maximum Concurrent Download Tasks: 80
exFAT Access (Optional): Yes
HiDrive Backup: Yes
MailPlus/MailPlus Server:
Yes
- Free Email Account: 5 (Licenses Required for Additional Accounts)
- Recommended Server Performance: Up to 500 (Btrfs) / 700 (EXT4)
- Maximum Server Performance: 2,948,000 (Btrfs) / 2,626,000 (EXT4) emails per day, approx. 90 GB (Btrfs) / 80.1 GB (EXT4)
Media Server: Yes
- DLNA Compliance: Yes
PDF Viewer: Yes
PetaSpace: Yes
Snapshot Replication:
- Maximum Snapshots per Shared Folder: 1024
- Maximum Snapshots of all Shared Folders: 65536
Spread Sheets: Yes
- Maximum Simultaneous Editing Users: 220 Surveillance Station
Maximum IP Cam (Licenses Required): 90 (including 2 Free License)
Total FPS (H.264):
- 2700 FPS at 720p (1280x720)
- 2250 FPS at 1080p (19201080)
- 900 FPS at 3M (2048x1536)
- 800 FPS at 5M (2591x1944)
Total FPS (MJPEG):
- 1050 FPS at 720p (1280x720)
- 525 FPS at 1080p (19201080)
- 350 FPS at 3M (2048x1536)
- 220 FPS at 5M (2591x1944) Video Station
Video Transcoding: Group 1 to Type 2
Maximum Transcoding Channel Number: 1 channel, 30 FPS at 720p (1280x720), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual DSM Manager: Yes
VPN Server: Maximum Connections 30 Environment
RoHS Compliant Optional Accessories
Camera License Pack
8GB DDR4 ECC UDIMM
16GB DDR4 ECC UDIMM
Expansion Unit: RX1217/RX1217RP x 2
VS360HD
Synology RKS1317 - Rail Kit Sliding
Synology Ethernet Adapter E10G15-F1
Synology Ethernet Adapter E10G17-F2 Package Contents
1 x Main Unit
1 x Accessory Pack
2 x AC Power Cord
1 x Quick Installation Guide
