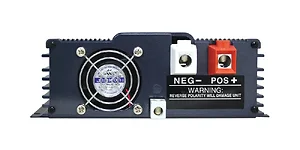

PST-1000-24 - Samlex America Samlex 1000W PST Series Pure Sine Wave Inverter - 24V

1000W PST Series Pure Sine Wave Inverter - 24V

This high-efficiency DC-AC inverter converts 24 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. With pin-type battery cable lugs included, the inverter features overload protection, low battery alarm/shut down, and a low idle power draw of less than 0.85 Amps. AC power is accessible from a NEMA-20R GFCI duplex outlet located on the front panel. The unit is safety certified to UL standards.

Key Features:

• High-efficiency operation
• Temperature controlled cooling fan for reduced energy consumption
• Low interference with sensitive electronics
• Wide DC input range: 21.0 - 33.0 VDC
• Commercial grade design, ideal for heavy-duty applications and emergency back up
• Universal Protection Circuit (UPC) with multiple safety features
• Low idle power draw for energy efficiency
• Dual GFCI protected AC outlets for added safety
• Optional remote control available (Model RC-15A sold separately)
• Includes pin-type battery cable lugs
• Safety certified to UL standards and FCC compliant

Specifications:

• Input Voltage: 24 VDC
• Output Voltage: 120 VAC
• Output Power: 1000 Watts
• Surge Power: 2000 Watts
• Weight: 8.8 lbs (4.0 kg)
• Dimensions: 9.37 x 15.63 x 3.23 in (238 x 397 x 82 mm)
• Safety Certification: ETL to UL Standards
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles & Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TVs, video games, computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to P65Warnings.ca.gov.

The Samlex PST-1000-24 is a 1000-watt pure sine wave inverter designed for converting 24 Volts DC to 120 Volts AC power. This unit is suitable for IT and business applications requiring stable and clean AC power from a DC source. It features a commercial-grade design, making it appropriate for heavy-duty use in environments such as service vehicles, mobile offices, telecommunication setups, and construction sites. The inverter includes overload protection, a low battery alarm/shut down, and maintains a low idle power draw of less than 0.85 Amps for energy efficiency. AC power is delivered via a NEMA-20R GFCI duplex outlet on the front panel, ensuring safety. With a wide DC input range of 21.0 to 33.0 VDC and UL safety certification, this inverter provides a reliable power conversion solution for critical equipment and emergency backup scenarios. Pin-type battery cable lugs are included for installation.
