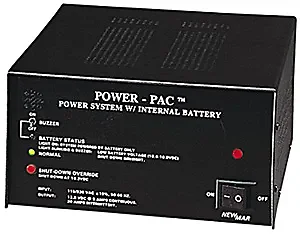

360-2014-0 - Newmar Power Pac 14AH Supply Unit

The Newmar Power Pac 14AH Power Supply is designed for critical applications such as VHF shore stations, ensuring continuous operation even during power outages. This 12-volt supply includes built-in backup batteries that are charged during normal operation, automatically supplying power to radios when AC power fails.

• Provides highly regulated, low ripple output for noise-free radio operation.
• Automatic battery activation when AC power is lost.
• Features a low battery alarm and disconnect, with an override switch for emergency power.

General Specifications:

• Input: 115/230 VAC, 50-60 Hz.
• Output: 13.6 VDC @ 5A continuous, 10A intermittent.
• Regulation: 1% line and load.
• Ripple: 1% P-P.
• Operating Temperature: 0-40�C.

Models:
Power-Pac 7 A/H (with 7 amp/hour battery), 18 lbs.
Power-Pac 14 A/H (with 14 amp/hour battery), 24 lbs.
Dimensions (both models): 5.3 inches H x 9.0 inches W x 10.5 inches D.

The Newmar Power Pac 14AH Supply Unit (part number 360-2014-0) is a 12-volt power supply designed for critical applications requiring uninterrupted operation, such as VHF shore stations. It integrates built-in 14 amp-hour backup batteries that are charged during normal AC power conditions. In the event of an AC power failure, the unit automatically transitions to battery power, ensuring continuous operation for connected equipment. This supply provides a highly regulated, low ripple output (1% P-P) to support noise-free radio operation. It features a low battery alarm and a disconnect function, along with an override switch for emergency power situations. The unit accepts 115/230 VAC input and delivers 13.6 VDC at 5A continuous, with 10A intermittent capability. It is suitable for IT environments where consistent power delivery to sensitive communication equipment is essential.
