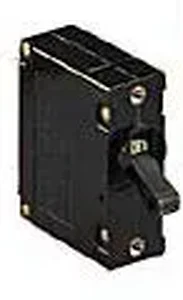

088-0051-2 - Newmar Power Newmar 5ASB Single Pole Breaker W/ Black Throw

All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC
systems and meet USCG requirements as a qualified circuit protection device.

Single and Double Pole

Fit all NEWMAR electrical panels, as well as most other brands

• Feature magnetic-hydraulic "trip-free" mechanism
• 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below).
• Mounting scrws not provide order separatly
• #10 screw terminals on rear for wiring

Options

• Red, white or black toggle handles
• Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp.
• Double pole values: 15, 20, 30 or 50 amp

Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems.

The Newmar 5ASB Single Pole Breaker with Black Throw, part number 088-0051-2, is a circuit protection device designed for integration into AC and DC electrical systems. This single-pole magnetic-hydraulic breaker is suitable for IT infrastructure and other business applications requiring reliable circuit protection. It is UL recognized and CSA listed, meeting USCG requirements for qualified circuit protection. The 5ASB is compatible with all Newmar electrical panels and most other brands, featuring a "trip-free" mechanism. It is available in single pole values from 5 to 50 amps and is rated for up to 65 VDC or 277 VAC, depending on the amperage. This component helps maintain system integrity by protecting against overcurrent conditions.
