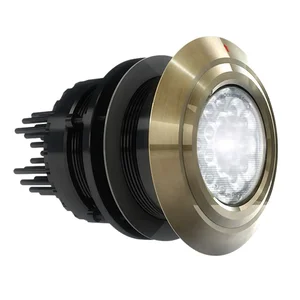

Oceanled 001-500748 OCEAN LED 3010XFM HD GEN 2 Underwater Light

Pro Series XFM HD Gen2

XFM models, or Xchangeable Flush Mounts, provide effortless exchangeability during servicing without the need for removal. Their exceptionally low profile enables a variety of hull mounting options, compatible with most existing underwater lighting cut-outs, offering numerous advantages such as no startup power surge, low heat, minimal maintenance requirements, and enhanced light output.

The 3010XFM HD Gen2 model boasts a brightness of 10,000 fixture lumens, making it 43% brighter than its predecessor by utilizing next-generation High Definition LEDs from Cree.

Designed for all hull types over 65' (20m) with a recommendation of 4 or more lights spaced 3-6' (1-1.8m) apart. For metal hulls, include the Delrin Isolation Sleeve accessory. Equipped with Deutsch plug-and-play quick connectors, this light is quick to install. Maintenance is straightforward; simply wipe away marine growth from its scratch-resistant Tritonium glass lens. Available in three vibrant LED color options.

For a less bright alternative, consider the 2010XFM HD Gen2. If a smaller hole cut-out for transom mount applications is needed, the 3010TH model is suitable. Choose from our Colors models if color-change capabilities are desired.

Mounting Recommendations:

• Boat Size: Up to 65' (20M)
• Transom Spacing: 3-6' (1.0-1.8M)
• Transom Quantity: 4+
• Hull Spacing: 4-8' (1.2-2.4M)
• Installation Depth: 10-12" (250-300mm)

Technical Specifications:

• Light Output Equivalent To: 2x100W HID Metal Halides
• Fixture Lumens: 10,000
• Current/Amp Draw (DC): 12VDC 10A / 24VDC 5A
• Current/Amp Draw (AC): 110VAC 50/60HZ 1.3A / 240VAC 50/60HZ 0.6A
