013204 - Oceanled Waterproof DMX Junction Box with 4 Outputs

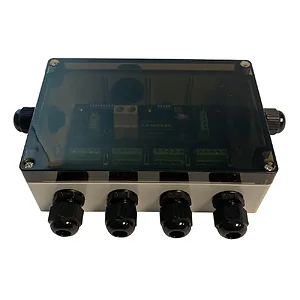

Waterproof DMX Junction Box with 4 Outputs

The OceanLED Junction Box is designed for seamless integration with DMX-controlled lighting systems. It features a robust waterproof construction (IP66) and operates within a low-voltage range (9�32V DC). This junction box provides a reliable power source with one power unit and four individually switched fused outputs, each rated for 6 amps. It is ideal for connecting various DC-powered lighting fixtures, including up to four DMX-controlled OceanLED X-Series lights.

Included Components:

• 1x OceanLED Junction Box with 4x 7.5A blade fuses
• 4x mounting screws
• 1x twin entry cable grommet
• 4x blanking plugs

Technical Specifications:

• Voltage Compatibility: 12/24V DC (max 32V DC)
• Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out & Lights Out
• Wire Gauge for Power Input: 8-20 AWG
• Wire Gauge for DMX & Lights Out: 12-28 AWG
• Output: 4 x individual fused outputs rated at 6 Amps each
• DMX Input: 1x DMX Input for connecting to a DMX controller
• DMX Output: 1x DMX Output for linking multiple junction boxes
• DMX Terminator: Features an onboard DMX terminator with on/off switch

Physical Dimensions:

• Size (including cable glands): 228mm x 174mm x 60mm (approx. 9" x 6.8" x 2.3")
• Enclosure Material: Durably constructed with IP66-rated polycarbonate
• Weight: 270g

The OceanLED Waterproof DMX Junction Box with 4 Outputs, part number 013204, is an electrical enclosure designed for integrating DMX-controlled lighting systems in environments requiring robust protection. This unit provides a centralized power and DMX distribution point for low-voltage DC lighting setups. It features an IP66-rated polycarbonate enclosure, ensuring waterproof and durable performance for various applications. Operating within a 9-32V DC range, it includes one power input and four individually switched, fused outputs, each rated at 6 amps. This configuration allows for reliable power delivery to up to four DC-powered lighting fixtures, such as OceanLED X-Series lights. The junction box also incorporates DMX input and output ports for seamless integration with DMX controllers and the ability to link multiple boxes. An onboard DMX terminator with an on/off switch helps maintain signal integrity. This product is suitable for IT and electrical professionals deploying DMX lighting systems in marine, outdoor, or other demanding environments where protection against water and dust ingress is critical.
