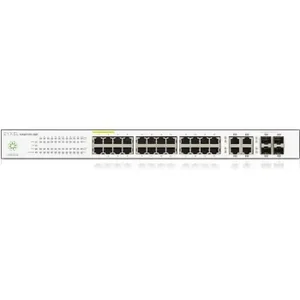

The Zyxel Nebula NSW100 Series Cloud Managed Switches provide Layer-2 Gigabit access switching with 8/24-port PoE and non-PoE models. The PoE models support 802.3at PoE Plus standards to provide a 180/375-watt highpower budget. Every Nebula switch is designed to be managed completely from the Nebula Control Center. The cloud-based management interface provides site-wide configuration and monitoring of all ports, which allows multiple switches to be configured at the same time with a single click over the Web.
Technical Specifications
Port Density Total port count : 28 100/1000 Mbps PoE : 24 Gigabit combo (SFP/RJ-45) : 4 Performance Switching capacity (Gbps) : 56 Forwarding rate (Mbps) : 41.67 Packet buffer (byte) : 1.5 M MAC address table : 16 K Power Input : 100 - 240 V AC, 50/60 Hz Max. power consumption (watt) : 454 Total PoE power budget (watt) : 375 Included accessories Power cord Rack mounting kit Environmental Specifications Operating : Temperature : 0oC to 50oC/32oF to 122oF Humidity: 10% to 95% (non-condensing) Storage : Temperature : -40oC to 70oC/-40oF to 158oF Humidity: 10% to 95% (non-condensing) MTBF (hr) : 949,326 Heat dissipation (BTU/hr) : 1,625.55 Acoustic noise (dBA) : 59.6
