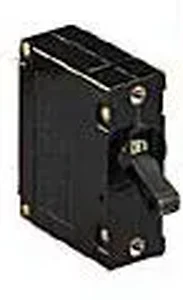

088-0101-2 - Newmar Power Newmar 10 Amp Single Pole Breaker W/ Black Throw

All circuit breakers offered by NEWMAR are UL recognized and CSA listed for AC and DC
systems and meet USCG requirements as a qualified circuit protection device.

Single and Double Pole

Fit all NEWMAR electrical panels, as well as most other brands

• Feature magnetic-hydraulic "trip-free" mechanism
• 5-30 amp rated to 65 VDC or 277 VAC; 40, 50 amp rated to 32 VDC or 120 VAC (See rating note below).
• Mounting scrws not provide order separatly
• #10 screw terminals on rear for wiring

Options

• Red, white or black toggle handles
• Single pole values: 5, 10, 15, 20, 25, 30, 40 or 50 amp.
• Double pole values: 15, 20, 30 or 50 amp

Important Circuit Breaker Rating Note: Standard series breakers shown on this page which are rated higher than 30 amps are acceptable for use in 230 VAC Line-to-Line systems (where each leg is 115 VAC - to - neutral), but are not rated for 230 VAC line-to-neutral systems.

The Newmar 10 Amp Single Pole Breaker with Black Throw is a circuit protection device designed for integration into AC and DC electrical systems. This component, part number 088-0101-2, is suitable for IT infrastructure and other business applications requiring reliable overcurrent protection. It features a magnetic-hydraulic "trip-free" mechanism, ensuring that the breaker cannot be held closed against an overcurrent condition. This single pole breaker is rated for 10 amps and is compatible with Newmar electrical panels, as well as many other brands. It addresses the need for a UL recognized and CSA listed circuit protection device that meets USCG requirements, providing a compliant solution for system builders and maintenance personnel. The unit connects via #10 screw terminals on the rear for wiring integration.
