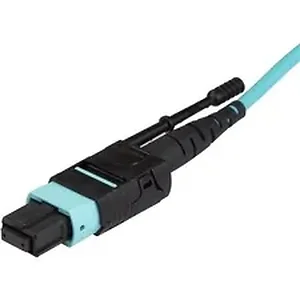

MPO12PL5M - Startech 5M (16.4FT) MTP(F)/PC OM3 MULTIMODE FIBER OPTIC CABLE, 12F TYPE-A, OFNP PLENUM,

General InformationThis MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools.The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.The MPO12PL5M from StarTech.com is backed by a lifetime warranty.Technical InformationCable Type: Fiber OpticFiber Optic Mode: Multi-modeCore/Cladding Diameter: 50/125 mCable Length: 16.40 ftConnector on First End: 1 x MTP/MPO Female NetworkConnector on Second End: 1 x MTP/MPO Female NetworkDevice Supported: HubDevice Supported: Media ConverterDevice Supported: RouterDevice Supported: ServerDevice Supported: Network DeviceDevice Supported: SwitchDevice Supported: Patch PanelData Transfer Rate: 40 Gbit/sPhysical CharacteristicsColor: AquaWeight (Approximate): 1.70 ozMiscellaneousEnvironmentally Friendly: YesEnvironmental Certification: REACHEnvironmental Certification: WEEEEnvironmental Certification: RoHSWarrantyLimited Warranty: Lifetime
