SKU: S59F7L3DKZ |  Mfg. Part: MPO8LCPL5M  | UPC: 065030878975  |
 3 Reviews  |     Share

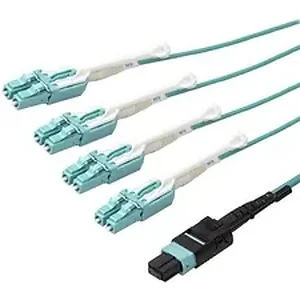

Startech MPO8LCPL5M 5m 15 ft MPO / MTP to LC Breakout Cable - Plenum Rated Fiber Optic Cable - OM3 Multimode, 40Gb - Pus

Out of Stock
Condition: New

$79.71  $107.61

Product Overview

This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. SpecificationsColor: AquaSize: 5 mHeight: 0.3 in [7 mm]Length: 16.4 ft [5 m]Width: 0.3 inWeight: 1.14 lbs- SKU: ISTR105212

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MPO8LCPL5M
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Fiber Optic Patch Duplex Network Cable
Marketing Information:This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

The MPO8LCPL5M from StarTech.com is backed by a lifetime warranty.


Packaged Quantity:1
Product Type:Network Cable
Technical Information
Cable Type:Fiber Optic
Cable Characteristic:Patch Cable
Fiber Optic Mode:Multi-mode
Core/Cladding Diameter:50/125 µm
Cable Length:16.40 ft
Connector Type on First End:MTP/MPO Network - Female
Connector on First End Details:1 x MTP/MPO Network - Female
Connector Type on Second End:LC Network - Male
Connector on Second End Details:8 x LC Network - Male
Features:
  • Uniboot Connector
  • Push-Pull Tab

Jacket Type:
  • Plenum
  • CMP

Device Supported:
  • Network Device
  • Patch Panel
  • Hub
  • Switch
  • Media Converter
  • Router

Data Transfer Rate:40 Gbit/s
Physical Characteristics
Product Color:Aqua
Weight (Approximate):0.19 lb
Miscellaneous
Environmentally Friendly:Yes
Environmental Certification:
  • RoHS
  • WEEE

Country of Origin:China
Warranty
Limited Warranty:Lifetime

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • STARTECH
  • MPO8LCPL5M
  • B07CZJ2MX6
  • 065030878975
  • New
  • 1 lbs
  • 197 X 0 X 0
  • Today - Mar 19, 2026
  • Nov 05, 2018
  • CN
Product Identifiers: Brand: Startech • Part #: MPO8LCPL5M • UPC: 065030878975 • ASIN: B07CZJ2MX6 • Category: Other Networking Cables

Startech MPO8LCPL5M 5m 15 ft MPO / MTP to LC Breakout Cable - Plenum Rated Fiber Optic Cable - OM3 Multimode, 40Gb - Pus
