Technical Specifications

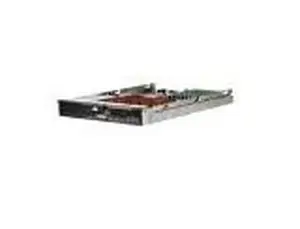

DISK-LESS COMPUTE MODULES,NO CPU(3PK)
The Intel Server Compute Module is based on the Intel 5000P series chipset with support for up to 32GB of memory. The server module is entirely diskless and connects to the virtualized shared storage allowing a flexible server configuration.
System Type Server barebone
Cabinet Form Factor Blade
Processor Type None Processor
Processor Manufacturer TBD
Processor Clock Speed TBD
Processor Installed Qty 0
Processor Max Supported Qty 2
Mainboard Chipset Type Intel 5000P
Mainboard / Data Bus Speed 1333 MHz
RAM Technology DDR2 SDRAM
RAM Installed Size 0 MB
RAM Max Supported Size 32 GB
Hard Drive Capacity 0 GB
Hard Drive / Installed Qty 0
Storage Controller Type Serial Attached SCSI
Storage Controller (2nd) Type Type Serial ATA - integrated
Monitor None
Networking Type Network adapter
Data Link Protocol Ethernet; Fast Ethernet; Gigabit Ethernet
Video Output Type Integrated
Graphics Controller ATI ES1000
Video Memory Technology DDR SDRAM
Video Memory Installed Size 16 MB
Interfaces 1 x display / video - 15 pin HD D-Sub (HD-15) ;2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots Total (Free) 1 ( 1 ) x expansion slot ;2 ( 2 ) x processor - LGA771 Socket ;8 (b ) x memory - FB-DIMM
UNSPSC CODE
UNSPSC Code 43211502
