2 Available / 143 Sold
Condition: New
DISC PROD SPCL SOURCING SEE NOTES
The Intel Core i5-8400 is a 6-core, 6-thread desktop processor from the 8th Generation Intel Core i5 Processors, code-named Coffee Lake. Operating at a base frequency of 2.80 GHz and capable of a Max Turbo Frequency of 4.00 GHz, this processor is built on a 14 nm lithography with a 65W TDP. It includes Intel UHD Graphics 630, supporting up to three displays with 4K resolution at 60Hz via DisplayPort or eDP. The processor supports up to 64 GB of DDR4-2666 memory across two channels and features 9 MB of cache. It is designed for single-socket FCLGA1151 configurations, making it suitable for standard business desktop builds requiring a balance of core count and clock speed for general office applications, multitasking, and moderate content consumption. The BX80684I58400 is a component for system integrators and IT departments building or upgrading desktop systems where a dedicated graphics card may not be necessary for daily operations.
Essentials
Product Collection: 8th Generation Intel Core i5 Processors
Code Name: Products formerly Coffee Lake
Vertical Segment: Desktop
Processor Number: i5-8400
Lithography: 14 nm Performance
Number of Cores: 6
Number of Threads: 6
Processor Base Frequency: 2.80 GHz
Max Turbo Frequency: 4.00 GHz
Cache: 9 MB
Bus Speed: 8 GT/s DMI3
TDP: 65 W Supplemental Information
Embedded Options Available: No
Conflict Free: Yes Memory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2666
Max Number of Memory Channels: 2
ECC Memory Supported: No Graphics Specifications
Processor Graphics: Intel UHD Graphics 630
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.05 GHz
Graphics Video Max Memory: 64 GB
Execution Units: 23
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304 at 24Hz
Max Resolution (DP): 4096x2304 at 60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304 at 60Hz
DirectX Support: 12
OpenGL Support: 4.5
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
Number of Displays Supported: 3
Device ID: 0x3E92 Expansion Options
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16 or 2x8 or 1x8+2x4
Max Number of PCI Express Lanes: 16 Package Specifications
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015C (65W)
TJUNCTION: 100oC
Package Size: 37.5mm x 37.5mm
Low Halogen Options Available: See MDDS Advanced Technologies
Intel Optane Memory Supported: Yes
Intel Turbo Boost Technology: 2.0
Intel vPro Technology: No
Intel Hyper-Threading Technology: No
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel TSX-NI: No
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Identity Protection Technology: Yes
Intel Stable Image Platform Program (SIPP): No Security and Reliability
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Intel Trusted Execution Technology: No
Execute Disable Bit: Yes
Intel Boot Guard: Yes Item Dimension (L"xW"xH")
5 x 3 x 4
Weight
1 lb
Warranty Information
3 Years Limited
The Intel Core i5-8400 processor requires an FCLGA1151 socket on the motherboard.
This processor supports up to 64 GB of DDR4-2666 memory across two memory channels.
Yes, the Intel Core i5-8400 includes Intel UHD Graphics 630, which supports up to three displays and 4K resolution at 60Hz.
The processor has a base frequency of 2.80 GHz and a Max Turbo Frequency of 4.00 GHz.

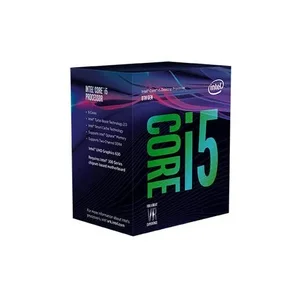

BX80684I58400 - Intel CORE I5-8400
