Product Information
- Part Number: YEA-MCOREPRO-MS
- Manufacturer: Yealink
- Product Line: Yealink MCore
- Model: MCorePro-MS
- Product Type: Conferencing Mini-PC (Microsoft Teams Rooms)
- Operating System: Windows 11 IoT Enterprise x64 (Preloaded with License)
- Microsoft Teams Certified: Yes
- CPU: Intel Core 11th Gen i5 Processor (Intel i5-1135G7 or Intel i5-1145G7E)
Product Description

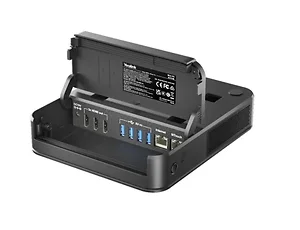

The Yealink MCorePro-MS is a powerful and compact mini-PC specifically engineered as the central processing unit for Yealink's Microsoft Teams Rooms conference systems. It leverages an 11th-generation Intel Core i5 processor to deliver robust data processing capabilities, ensuring smooth and reliable video conferencing experiences. The MCorePro features three built-in HDMI video output interfaces, enabling simultaneous display across up to three screens for a diverse and immersive video conferencing setup. Enhanced security is provided by TPM 2.0. The automatic wake-up screen feature, supported by CEC, allows for convenient one-touch system activation. Its compact design and integrated cable management contribute to a clean and straightforward deployment in various conference room sizes.
Product Specifications
- System Preload: Windows 11 IoT Enterprise x64 operating system, Windows 11 IoT Enterprise License, Microsoft Teams Rooms App, Yealink RoomConnect Management Tool
- CPU Details: Intel Core 11th Gen i5 Processor (Intel i5-1135G7/Intel i5-1145G7E)
- Memory: 8GB (2 x 4GB) DDR4 RAM
- Storage: 128GB SSD
- Video Outputs: 3 x HDMI (1 x HDMI 2.1 supporting 5K 21:9, 2 x HDMI 2.0)
- USB Ports: 4 x USB 3.0 Type-A Port
- Network Port: 1 x 10/100/1000 Gigabit Ethernet Port (RJ-45)
- MTouch Port: 1 x RJ-45 (for connecting to Yealink MTouch Plus / MTouch E2 touch panel)
- Wireless Connectivity: Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6), Bluetooth: BT 5.2
- Security Features: TPM 2.0, UEFI Secure Boot, Kernel DMA, Built-in security slot
- Power Input: 19V DC, 4.74A (Power Supply: Input 100-240V ~ 50/60Hz 1.5A, Output 19V 4.74A 90.06W)
- Dimensions (H x W x D): 1.54 x 6.61 x 7.76 inches (39 x 168 x 197 mm)
- Weight: 0.69 kg (1.52 lbs)
- Operating Temperature: 0 to 40?C (32 to 104?F)
- Operating Humidity: 10 to 95%
- Mounting: Mount bracket included for flexible deployment
- Features: CEC (Consumer Electronics Control) support for automatic screen wake-up, EDID (Extended Display Identification Data) support
Package includes:
Mini-PC, 3x HDMI Cables, Mounting Kit, Power Adapter, Power Cord, Manual
Product may differ from image shown
