MB840M2P-B - Icy Dock AC MB840M2P-B ToughArmor M.2 NVMe SSD t | Aztek Computers
29+Years
SKU: IVKPFIS7IS |  Mfg. Part: MB840M2P-B  | UPC: 884826508311  |
 2 Reviews  |     Share

MB840M2P-B - Icy Dock AC MB840M2P-B ToughArmor M.2 NVMe SSD t PCIe 3.0x4 Removable SSD Rack

2 Available / 1 Sold
Condition: New

$113.62  $153.39
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

SSD TO PCIE 3.0 X4 SSD MOBILE RACK

Expert Overview

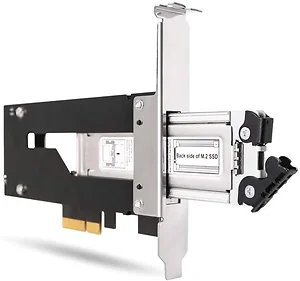

The Icy Dock ToughArmor MB840M2P-B is a removable M.2 NVMe SSD rack designed for integration into a PCIe expansion slot. This device allows a single M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) to be installed into a PCIe 3.0 or 4.0 x4/x8/x16 slot, providing up to 32Gbps transfer rates depending on the drive. It is suitable for IT professionals and system integrators who require hot-swappable NVMe storage in server, workstation, or industrial PC environments. The metal construction with partial ABS plastic and passive cooling helps manage drive temperatures. This rack addresses the need for easily accessible and maintainable high-speed storage, particularly in situations where frequent drive changes or data portability are necessary without opening the entire system chassis. Power is supplied via the PCIe slot, simplifying installation.

Technical Specifications

Color :
Black and Silver Support Drive Size :
1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) Compatible Drive Type :
NVMe Number of Drives :
1 Support Drive Length :
30mm - 110mm Drive Bay :
1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot Host Interface :
PCIe 3.0 x4 Power Input :
Via PCIe Transfer Rate :
Up to 32Gbps (Depending on hard drive speed) Support HDD Capacity :
No Limitation Drive Cooling :
Metal heat dispersion with passive cooling Structure / Material :
Metal with partial ABS plastic Drive Activity LED Indication :
Drive power: solid green, HDD access: flashing green Package contents :
Device, user manual, screw, I/O Faceplate SATA Connector Insertion Rate :
5,000 Humidity :
5%-65% RH Opertating Temperature :
0oC to 60oC (32oF to 140oF) Storage Temperature :
-35oC to 70oC (-31oF to 158oF) Compliance :
CE, RoHS, REACH Item Dimension (L"x W"x H")
1 x 7 x 5
Weight
1.00 LB
Warranty Information
3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Icy Dock
  • MB840M2P-B
  • B089VR1CJG
  • 884826508311
  • New
  • 1 lbs
  • 5 X 5 X 5
  • Aug 02, 2026
  • Jul 24, 2020
  • Yes
Product Identifiers: Brand: Icy Dock • Part #: MB840M2P-B • UPC: 884826508311 • ASIN: B089VR1CJG • Category: Network Cards • TAA Compliant

Frequently Asked Questions

What M.2 NVMe SSD sizes are compatible with this rack?

This rack supports M.2 PCIe NVMe SSDs in sizes 2230, 2242, 2260, 2280, and 22110, accommodating drive lengths from 30mm to 110mm.

What is included in the package?

The package includes the device, a user manual, mounting screws, and an I/O Faceplate for installation.

What type of PCIe slot is required for installation?

The device requires one PCIe 3.0 or 4.0 x4, x8, or x16 expansion slot for installation and power.

What is the maximum data transfer rate supported?

The host interface is PCIe 3.0 x4, supporting transfer rates of up to 32Gbps, which will vary based on the specific M.2 NVMe SSD's speed.
