TG-3468 - Tplink GB PCI-E NETWORK ADAPTER

96 Available
Condition: New

$55.00

AUTHORIZED
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

TP-LINK 32-bit Gigabit PCIe Ne

Expert Overview

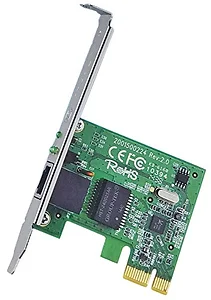

The TPLINK TG-3468 is a 32-bit Gigabit PCIe Network Adapter designed for integrating into desktop systems requiring a wired network connection. This adapter facilitates network connectivity for business and IT environments, supporting IEEE 802.3, 802.3u, and 802.3ab standards. It is suitable for upgrading existing systems or building new workstations that need reliable Gigabit Ethernet capabilities via a PCIe 1.0a interface. The TG-3468 addresses common connectivity needs by providing a stable 10/100/1000Mbps RJ45 port, supporting both half-duplex and full-duplex modes with respective transmission rates up to 2000Mbps. Features like Wake-on-LAN, Auto-Negotiation, and Auto MDI/MDIX are included for operational convenience. This network card is compatible with various Windows and Linux operating systems, offering a straightforward solution for establishing or enhancing network access.

Technical Specifications

Specifications Standards and Protocols : IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p / CSMA/CD, TCP/IP Interface : 32-bit PCIe 1.0a Transmission Rate : 10/100Mbps for Half-Duplex mode / 20/200/2000Mbps for Full-Duplex mode Flow Control : IEEE 802.3x Flow Control (Full-Duplex) Jumbo Frame : 4k Bytes Port : 10/100/1000Mbps RJ45 Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) LED Indicator : 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex Safety and Emission : FCC, CE Environment :
Operating Temperature: 0C - 40C (32F - 104F)
Storage Temperature: -40C - 70C (-40F - 158F)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing Operating System : Windows 98se/Me/2000/XP/XP64, Linux, Vista32/64 Package Dimension (LxWxH) : 7 x 2 x 6 inch Features Wake-on-LAN supporting Auto-Negotiation and Auto MDI/MDIX Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging Supports power down/link down power saving

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • TPLINK
  • TG-3468
  • B08B3PSV9K
  • 845973001049
  • New
  • 0.2 lbs
  • 6 X 1 X 5
  • Today - Sep 15, 2026
  • Feb 29, 2020
  • Yes
  • China
Product Identifiers: Brand: Tplink • Part #: TG-3468 • UPC: 845973001049 • ASIN: B08B3PSV9K • Category: Network Cards • TAA Compliant

Frequently Asked Questions

What type of PCIe slot is required for this network adapter?

The TPLINK TG-3468 requires a 32-bit PCIe 1.0a interface slot for installation and operation.

What operating systems are supported by this network card?

This network adapter supports Windows 98se/Me/2000/XP/XP64, Vista32/64, and Linux operating systems.

Does this adapter support Jumbo Frames?

Yes, the TPLINK TG-3468 supports Jumbo Frames up to 4k Bytes, which can improve efficiency for large data transfers.

What network media types are compatible with the RJ45 port?

The RJ45 port is compatible with UTP category 3, 4, 5 cable for 10BASE-T, UTP category 5, 5e cable for 100BASE-TX, and UTP category 5, 5e cable for 1000BASE-T, all up to a maximum of 100m.
