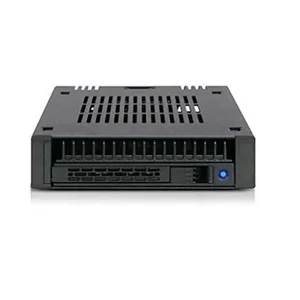

The Icy Dock MB741SP-B is a mobile rack designed to install a single 2.5-inch SAS or SATA SSD/HDD into an external 3.5-inch drive bay. This unit is intended for IT professionals and system integrators who need to integrate smaller form factor drives into systems primarily configured for 3.5-inch storage. It addresses the challenge of utilizing available 3.5-inch bays for 2.5-inch drives, offering hot-swap capability for efficient drive management. The enclosure supports drives up to 15mm in height and features a metal and ABS plastic construction. It connects via a single SATA 7-pin host interface and uses a 15-pin SATA power connector, supporting transfer rates up to 6Gbps depending on the installed drive. Drive activity is indicated by a blue LED.
Product Name :
1 x 2.5" SAS/SATA SSD/HDD Mobile Rack for External 3.5" Bay Color :
Black Support Drive Size :
2.5" SSD / HDD Compatible Drive Type :
SATA / SAS (SAS host required / Single channel) Number of Drives :
1 Max Drive Height :
15mm Drive Bay :
1 x external 3.5" drive bay Host Interface :
1 x SATA 7pin Power Input :
1 x 15 pin SATA power connector Transfer Rate :
Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity :
No Limitation Structure / Material :
Metal with partial ABS plastic Support Hot-Swap :
Yes Drive Activity LED Indication :
Drive power: solid blue HDD access: flashing blue Package contents :
1 - Device, 1 - user manual, 6 - screws SATA Connector Insertion Rate :
10,000 Humidity :
5% to 65% RH Operating Temperature :
0oC to 60oC (32oF to 140oF) Storage Temperature :
-35oC to 70oC (-31oF to 158oF) Compliance :
CE, RoHS, REACH
The package includes one device, a user manual, and six screws for installation. No additional cables are supplied.
Yes, the Icy Dock MB741SP-B supports hot-swap functionality. This allows for the removal and insertion of drives while the system is running, provided the host system also supports hot-swapping.
This mobile rack supports 2.5-inch SSDs or HDDs with a maximum height of 15mm. Drives exceeding this height will not fit.
