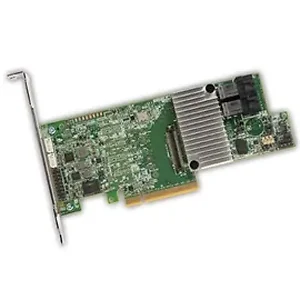

Broadcom 05-25420-16 LSI Logic Controller Card 05-25420-16 9361-8i 8Port SAS 12Gb/s PCI-Express 2GB DDR3 2xSyncro Retail

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance todays applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.
Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS ports
Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
Support critical, high-bandwidth applications with PCIe 3.0 connectivity
Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
Add more protection and peace of mind with optional CacheVault flash cache protection.

Form Factor:
LP MD2

Ports:
8

Connectors:
2 x SFF-8643

Bus Interface:
PCIe 3.0 x8

No. of Devices Supported:
96

Cache Memory:
2GB

Cache Protection:
CacheVault Included

Item Dimension (L"xW"xH"):
10.875 x 10.5 x 2.5

Weight:
2.9 lb

Warranty Information:
3 years
