Condition: New

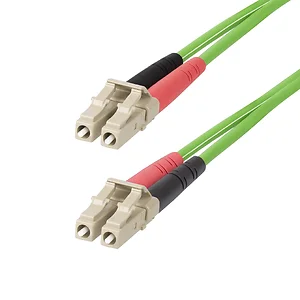

The STARTECH LCLCL-7M-OM5-FIBER is a 7-meter (22.9-foot) LC to LC (UPC) OM5 multimode fiber optic cable designed for high-speed network applications. This 50/125m duplex Low-Water-Peak Multimode Fiber (LOMMF) cable is optimized for 100G networks, providing an extended 850-953nm VCSEL wavelength range. This extended range facilitates Shortwave Wavelength Division Multiplexing (SWDM), offering enhanced channel isolation and performance compared to OM4 cables. It features UPC-polished ends to minimize return loss and molded strain reliefs for durability. The bend-insensitive fiber core, housed within an Aramid-reinforced Low Smoke Zero Halogen (LSZH) jacket, allows for a loaded bend radius of 6cm and an unloaded bend radius of 3cm. This cable is suitable for connecting fiber switches, servers, Storage Area Networks (SANs), and SFP+/QSFP+/QSFP28 units in data center and enterprise environments requiring reliable, high-bandwidth optical connectivity.
This OM5 multimode fiber optic cable is optimized for 100G networks and also supports 40G applications, leveraging its extended VCSEL wavelength range for high-bandwidth data transmission.
The cable features LC to LC connectors with UPC (Ultra Physical Contact) polished ends, which are designed to minimize return loss for improved signal integrity.
The cable is housed in an Aramid-reinforced Low Smoke Zero Halogen (LSZH) jacket. This material is beneficial in enclosed spaces as it emits less smoke and no toxic halogens when exposed to high heat or fire.
Yes, the cable features a bend-insensitive fiber core, allowing for a loaded bend radius of 6cm and an unloaded bend radius of 3cm. This design makes it suitable for installations where space is limited or tight bends are necessary.
LCLCL-7M-OM5-FIBER - Startech 7M (22.9FT) LC TO LC (UPC) OM5 MULTIMODE FIBER OPTIC CABLE, 50/125M DUPLEX LOMMF
