Special Order
Ships in 1-2 weeks
Condition: New
Planar Part Number
997-8169-00
Product Name
LX46HDU-L-ERO-F
Technology
Commercial-grade direct view LCD
Diagonal
46 inches
Aspect Ratio
16:9
Native Resolution Panels
1920 x 1080
Tiled Bezel Width
3.7 mm
Brightness (typ)
500 cd/m or nits
Response Time (typ)
8 ms
Contrast ratio (full field)
3500:1
Full viewing angle
178 degrees
Backlight life (1/2 brightness)
50,000 Hrs
Mounted depth
3.7" wall to front of screen
Acoustic noise
Fanless operation
Heat load
376 BTU per hour at 500 nit
Operating temperature range
5 - 40 Degrees C
Operating humidity range
20-90% RH non-condensing
Backlight control
Individual and wall control
Backlight sensing and reporting
At display level
Display module position sensing
Auto-sensing integrated
Power Consumption (typ)
137 watts
Power supply voltage
100-230V AC 10%, 50-60 Hz
Power Status
Diagnostics LEDs, health monitoring and alerts
Safety regulations
Complies with EN60950, FCC Class A, CISPR22/85, CE, EU RoHS
Data Inputs
4 HDMI inputs, 1 DisplayPort input
Control
IR Remote, RS232, Ethernet (optional)
Touch Options
Clarity Matrix MultiTouch Kits: MT6-6 Simultaneous Touch Points MT32-32 Simultaneous Touch Points
Touch Frame Dimensions
2.6" x 2.6" x 4.5"
Power for Touch System
100-240V AC, 50-60 Hz
OS Compatibility
Windows 8, Windows XP, Mac OS X, Android (limited to iStick), Linux
Fiber Video Extension Module Option
1 RU rack mount module drives up to 4 panels.
Fiber Video Extension Module Outputs
SFP multi-mode transceivers supports distances up to 300m from wall. Single mode compatible up to 10k from the wall.
Item Dimension (L inchxW inchxH inch)
41 x 23 x 4
Weight
142 lb
Warranty Information
3-Years

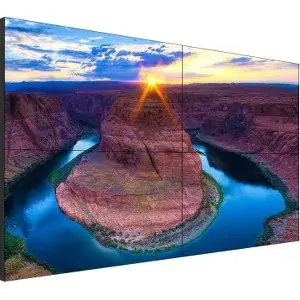

Planar 997-8169-01 LCD 997-8169-00 LX46HDU-L-ERO-F 46 Clarity Matrix MultiTouch Interactive Video Wall 1920x1080
