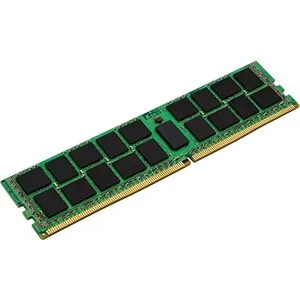

Kingston KSM32RD4/64MER 64GB 3200MHZ DDR4 ECC REG

CL(IDD)
22cycles Row Cycle Time (tRCmin)
45.75ns(min.) Refresh to Active/Refresh
Command Time (tRFCmin)
350ns(min.) Row Active Time (tRASmin)
32ns(min.) Maximum Operating Power
IDD Specifications
Symbol 3200 Units
IDD0 1674 mA
IPP0 90 mA
IDD1 1872 mA
IDD2N 1620 mA
IDD2NT 1602 mA
IDD2P 1368 mA
IDD2Q 1512 mA
IDD3N 2160 mA
IPP3N 72 mA
IDD3P 1728 mA
IDD4R 2970 mA
IDD4W 2574 mA
IDD5R 1908 mA
IPP5R 108 mA
IDD6N 1908 mA
IDD6E 4068 mA
IDD6R 720 mA
IDD6A 396 mA
IDD6A 720 mA
IDD6A 1836 mA
IDD6A 4068 mA
IPP6X 216 mA
IDD7 4230 mA
IPP7 198 mA
IDD8 1296 mA UL Rating
94 V - 0 Operating Temperature
0^oC to +85^oC Storage Temperature
-55^oC to +100^oC Module Assembly
DRAM: MICRON (E-DIE)
RCD: Rambus Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.77lb
Warranty Information
Lifetime Warranty
