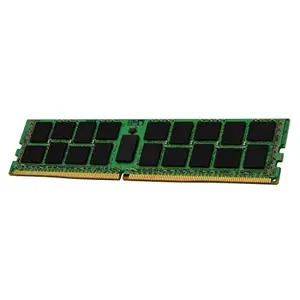

Kingston KSM29RS8/16MER 16GB 2933MHZ DDR4 ECC REG CL21

CL(IDD)
21 cycles Row Cycle Time (tRCmin)
46.32ns(min.) Refresh to Active/Refresh
Command Time (tRFCmin)
350ns(min.) Row Active Time (tRASmin)
32ns(min.) Maximum Operating Power
IDD Specifications
Symbol 2933 Units
IDD0¹ 531 mA
IPP0¹ 27 mA
IDD1¹ 630 mA
IDD2N² 396 mA
IDD2NT¹ 450 mA
IDD2P² 342 mA
IDD2Q² 378 mA
IDD3N² 540 mA
IPP3N² 18 mA
IDD3P² 441 mA
IDD4R¹ 1386 mA
IDD4W¹ 1107 mA
IDD5R¹ 612 mA
IPP5R¹ 36 mA
IDD6N² 477 mA
IDD6E² 1017 mA
IDD6R² 180 mA
IDD6A² 99 mA
IDD6A² 180 mA
IDD6A² 459 mA
IDD6A² 1017 mA
IPP6X² 54 mA
IDD7¹ 1647 mA
IPP7¹ 72 mA
IDD8² 324 mA UL Rating
94 V - 0 Operating Temperature
0^oC to +85^oC Storage Temperature
-55^oC to +100^oC Module Assembly
DRAM: MICRON (E-DIE)
RCD: Rambus Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00lb
Warranty Information
Lifetime Warranty
