Product Overview

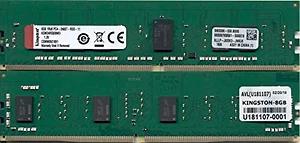

Kingston's KSM24RS88MEI is a 1G x 72-bit (8GB) DDR4-2933 CL21 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2933 timing of 21-21-21 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Technical Specifications
CL(IDD)
17 cycles Row Cycle Time (tRCmin)
46.16ns(min.) Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.) Row Active Time (tRASmin)
32ns(min.) Maximum Operating Power
AUR UL Rating
94 V - 0 Operating Temperature
0o C to +85o C Storage Temperature
-55o C to +100o C Item Dimension (L inchxW inchxH inch)
3 x 7 x 1
Weight
1.00lb
Warranty Information
Lifetime Manufacture Warranty
